Product Overview

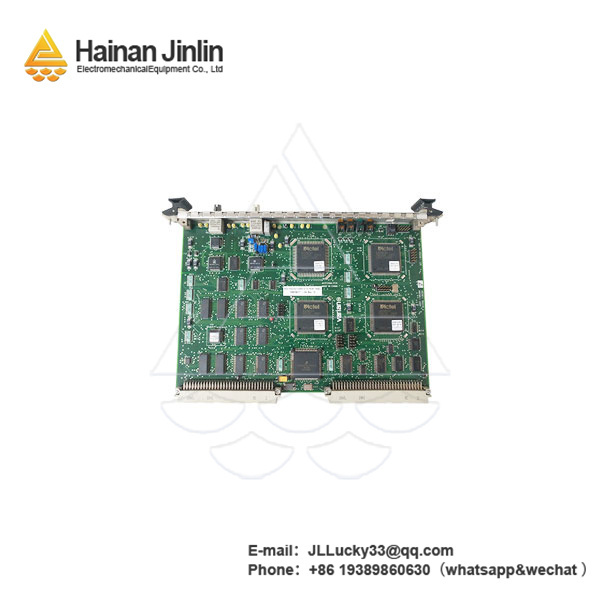

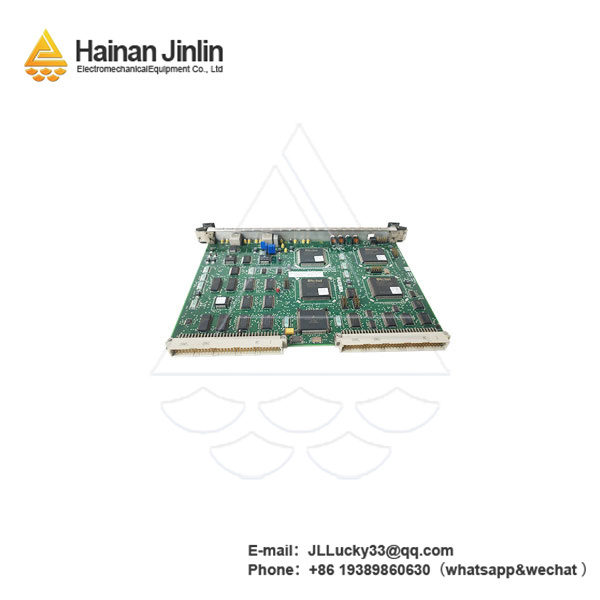

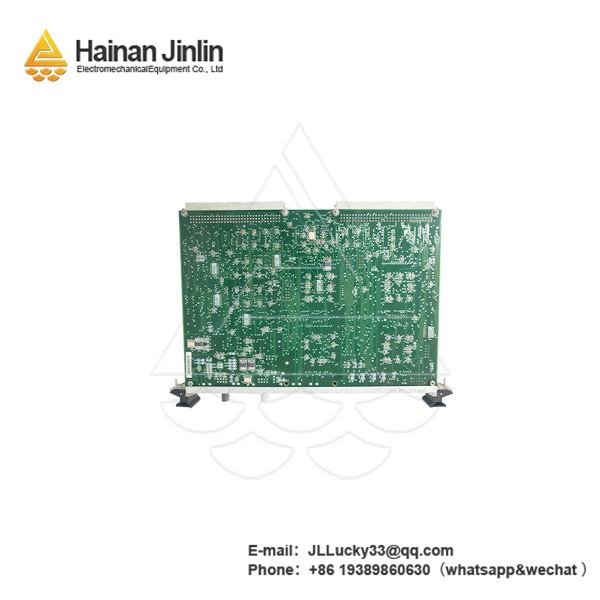

The VARIAN 100010078-01 is a high-precision vacuum control module, a critical component in Varian's portfolio of industrial vacuum systems. Designed for use in demanding applications such as semiconductor manufacturing, analytical instrumentation, and research laboratories, this module ensures stable and accurate control of vacuum pressure, a key parameter in processes requiring ultra-clean and controlled environments. The VARIAN 100010078-01 integrates advanced sensor technology with robust control algorithms, enabling real-time pressure monitoring and precise adjustment of vacuum levels. Its compact design and compatibility with Varian's vacuum pumps and systems make it a versatile solution for both new installations and system upgrades. Whether in wafer fabrication or material science research, the VARIAN 100010078-01 plays a vital role in maintaining process integrity and ensuring consistent results.
Hainan Jinlin Mechanical & Electrical, a trusted distributor of industrial control products, specializes in supplying components like the VARIAN 100010078-01. Adhering to the "Customer First, Forge Ahead" philosophy, we provide expert pre-sales guidance and reliable after-sales support to ensure optimal performance in your applications.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
VARIAN 100010078-01
|
|
Manufacturer
|
Varian
|
|
Product Type
|
Vacuum Control Module
|
|
Operating Voltage
|
24V DC ±5%
|
|
Pressure Measurement Range
|
1x10⁻³ to 1000 mbar
|
|
Control Accuracy
|
±1% of full scale
|
|
Communication Interface
|
RS-232, Ethernet (optional)
|
|
Operating Temperature
|
5°C to 40°C
|
|
Mounting Style
|
DIN Rail / Panel Mount
|
|
Enclosure Rating
|
IP30
|
|
Output Signals
|
4-20 mA (for valve/pump control)
|
Key Features and Benefits
High-Precision Pressure Regulation
The
VARIAN 100010078-01 excels in maintaining vacuum pressure within tight tolerances, with a control accuracy of ±1% of full scale. This level of precision is critical in semiconductor manufacturing, where even minor pressure fluctuations can affect wafer quality. Equipped with a high-sensitivity pressure sensor, the module continuously monitors pressure levels and adjusts connected vacuum valves or pumps in real time, ensuring stability across its measurement range of 1x10⁻³ to 1000 mbar. This capability minimizes process variability, enhancing product quality and yield.
Seamless System Integration
Designed to work with Varian's vacuum pumps, valves, and monitoring systems, the VARIAN 100010078-01 offers flexible connectivity options, including standard RS-232 and optional Ethernet. This allows for easy integration into existing control networks, enabling centralized monitoring and adjustment via PLCs, HMIs, or laboratory information management systems (LIMS). Its compatibility with industry-standard protocols simplifies setup, reducing integration time and ensuring interoperability with third-party equipment in mixed-system environments.
Robust and Compact Design
Built to withstand the cleanroom and laboratory environments, the
VARIAN 100010078-01 features a rugged enclosure with an IP30 rating, protecting internal components from dust and minor debris. Its compact form factor supports both DIN rail and panel mounting, making it suitable for space-constrained installations. The module operates reliably in temperatures ranging from 5°C to 40°C, ensuring consistent performance in controlled environments without the need for additional cooling.
Advanced Diagnostic Capabilities
The VARIAN 100010078-01 includes built-in diagnostic tools that monitor sensor health, communication status, and internal module performance. It provides real-time alerts for anomalies such as sensor drift, communication errors, or power fluctuations, allowing maintenance teams to address issues before they impact processes. This proactive monitoring reduces downtime and extends the module's operational lifespan, ensuring long-term reliability in critical applications.
Related Models
- VARIAN 100010078-02 – A high-temperature variant of the VARIAN 100010078-01, rated for operation up to 60°C, ideal for industrial ovens or high-heat vacuum processes.
- VARIAN 100010079-01 – A higher-range model with pressure measurement up to 10,000 mbar, suitable for applications requiring transition from vacuum to low positive pressure.
- VARIAN 100010077-01 – A predecessor to the VARIAN 100010078-01 with basic pressure control features, compatible with legacy Varian vacuum systems.
- VARIAN 100010123-01 – A companion pressure sensor module calibrated for use with the VARIAN 100010078-01, enhancing measurement precision in ultra-high vacuum applications.
- VARIAN 100010080-01 – A dual-channel version of the VARIAN 100010078-01, allowing simultaneous control of two independent vacuum zones in complex systems.
As a certified partner of Varian and other industry leaders, we supply the VARIAN 100010078-01 for critical applications across sectors. In semiconductor manufacturing, it controls vacuum in deposition and etching processes; in analytical labs, it supports mass spectrometry and electron microscopy; in research facilities, it enables controlled environment experiments in material science.
We offer a one-year warranty for the
VARIAN 100010078-01, backed by expert pre-sales consultations to help select the right configuration and responsive after-sales service for troubleshooting. If you need further details or cannot find the model you require, contact us immediately.
