Manufacturer Rockwell Automation
Brand Allen Bradley
Part Number/Catalog number 1763-L16AWA
Series MicroLogix 1100
Product Type Programmable controller
Input power 120 to 240 volts AC

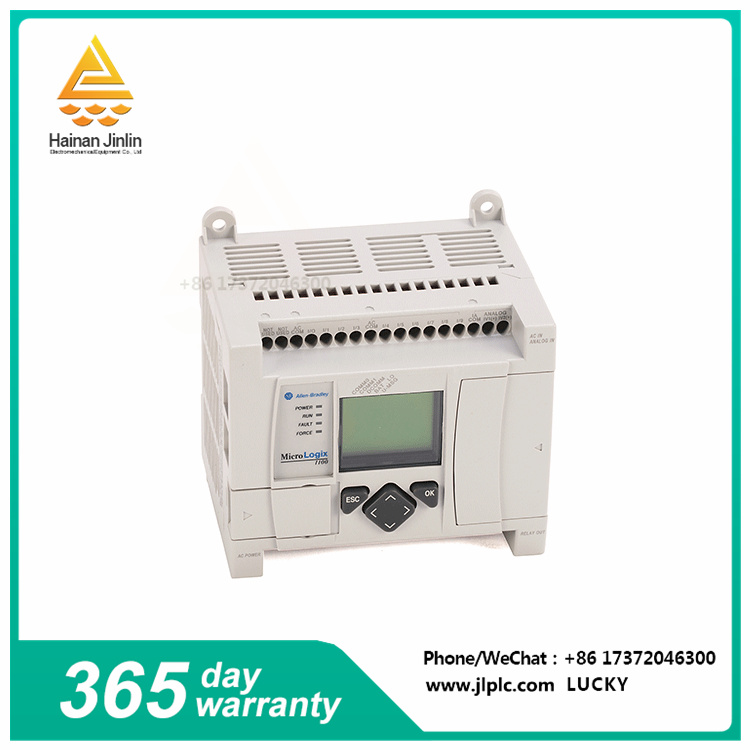

The Allen-Bradley 1763-L16AWA is part of the Bulletin 1763 MicroLogix 1100 programmable controller family. The controller has integrated RS232 and Ethernet communication ports. The EtherNet/IP port of the 1763-L16AWA provides high-speed connectivity and the ability to access, program, and monitor from any available Ethernet node. Other notable features include a built-in LCD display, isolated RS-232/485 communication port, and an embedded Web server.
The 1763-L16AWA programmable controller requires an input voltage power supply of 120 to 240 V AC. Its power consumption is 46VA. The controller integrates ten (10) 120 volt AC digital inputs and two (2) 0-10 VDC analog voltage inputs. It also has six (6) independently isolated relay output channels. Devices connected to the combined RS-232/RS-485 ports of the 1763-L16AWA should be floating or grounded with reference controllers. Bulletin 1763-L16AWA is a compact programmable logic controller solution that can handle a variety of tasks. It is ideal for typical applications such as material handling, packaging, general industrial machinery, printing, food and beverage handling, pharmaceuticals, water and wastewater solutions, clutch/brake control and position control. Most applications require the 1763-L16AWA controller to be installed in an industrial housing to reduce the impact of environmental exposure and electrical interference.
The 1763-L16AWA is a MicroLogix 1100 programmable logic controller (PLC). The controller is a compact controller manufactured by Allen-Bradley for installation in small-scale applications. The controller has twelve (12) 120VAC discrete inputs, two (2) 0-10VDC analog inputs, and six (6) relay outputs.
Discrete input with 79... 132V AC, OFF state voltage range 0-20VAC. At 79V AC voltage, the minimum conduction current of the device is 5.0 mA; The nominal value is 12 mA at 120V AC and the maximum value is 16.0 mA at 132V AC.
Analog inputs accept 0-10VDC voltage signals and can be used to receive signals from transmitters, sensors, converters and other devices. The received voltage signal is converted by an integrated analog-to-digital converter and stored as a 10-bit unsigned integer. The analog channel has a resolution of 10 bits.
3.The relay output channel is designed for 10A load current and has a mechanical life of 10,000,000 cycles. It closes and opens for 10 milliseconds. It can operate in the voltage range of 125VDC and 120-240VAC.
The controller integrates an RS232/485 communication port. This port is designed for point-to-point and network communication. RS232 mode is used for point-to-point communication and RS485 is used for multi-node communication. It also comes with an Ethernet communication port that allows connections to Ethernet IP networks at 10/100 mbps. Controller parameters, including communication Settings, can be assigned via the provided LCD screen. I/O testing and troubleshooting can also be done through this LED display.
3.The relay output channel is designed for 10A load current and has a mechanical life of 10,000,000 cycles. It closes and opens for 10 milliseconds. It can operate in the voltage range of 125VDC and 120-240VAC.
