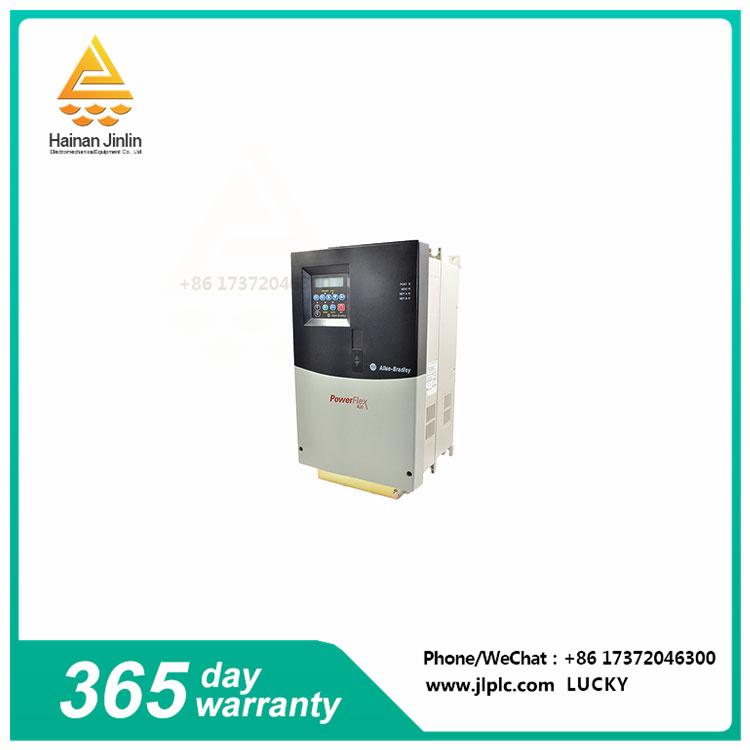

The Allen-Bradley 22C-D060A103 is an adjustable frequency AC inverter that is part of the PowerFlex 400 for fan and pump applications. The 22C-D060A103 is also known as a Variable frequency drive (VFD) or Variable speed drive (VSD).
22C-D060A103 Input parameters include three-phase supply voltage, 340-528VAC, apparent power of 53.3 kVA, 64 amps. On the other hand, the output capacity includes 0-460VAC, three-phase, with an output current of 60.0A@45 Deg.C; 54.0A@ 50 degrees, the output power is 30.0 kW or 40.0 HP.22C-D060A103
Supports panel mounting to enclosures with IP30 / NEMA UL Type 1 protection. Keep panel vibration from exceeding 1G peak, 5 to 2000 Hz, and shock 15G peak lasting 11 ms (±1.0 ms). This drive is equipped with an internal fan to help keep the drive warm.
The bus overvoltage trip of 22C-D060A103 is 810V DC bus voltage, equivalent to 575V AC input line, and the bus undervoltage trip is 390V DC bus voltage, equivalent to 275V AC input line. It has 200% hardware limited overcurrent trip, 300% instantaneous fault, ground fault trip relative to the drive output and short circuit trip relative to the drive output.
In addition, it can be configured locally using an integrated Human Machine Interface module (HIM), commonly referred to as a keyboard. The keyboard has two (2) parameter lines, each displaying sixteen (16) characters.
When installing the Allen-Bradley 22C-D060A103 PowerFlex 400 inverter, it must not be installed in an environment containing corrosive liquids or exposed to liquids and environmental conditions such as rain, wind and strong ultraviolet light. The drive also has an RS-485 communication port.
The Allen-Bradley 22C-D060A103 Powerflex 400 inverter is equipped with an IP30 housing that allows the inverter to be mounted on the panel. The housing protects the drive from external particles while preserving all existing connections. Allen-Bradley 22C-D060A103 PowerFlex 400 variable frequency drives must have a gap between them and the equipment installed near them. These gaps will help the drive release heat in a more efficient manner and prevent the drive from overheating.
The 22C-D060A103 uses Logix controls to simplify parameter and label programming, thereby reducing development time.
