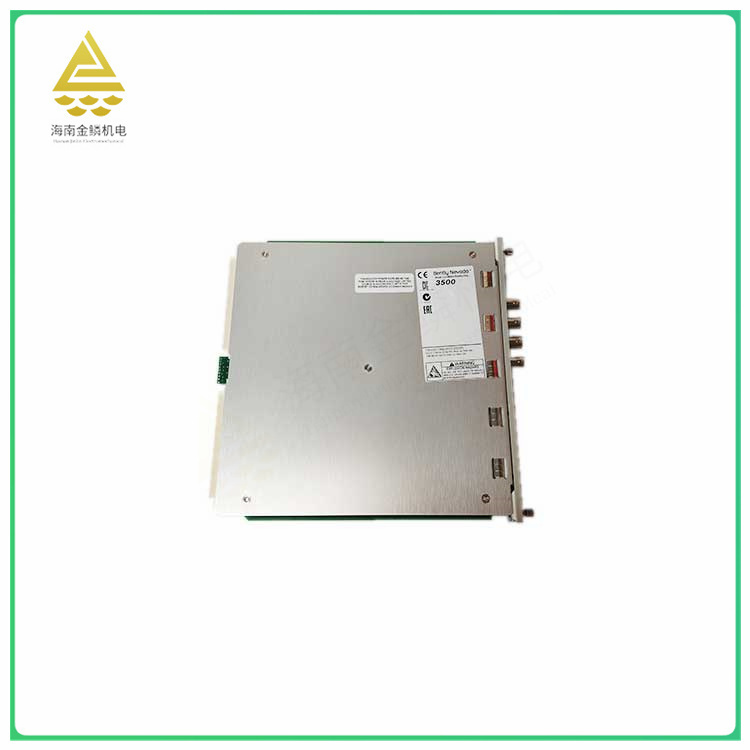

3500-25-149369-01 is an enhanced bond phase module manufactured by Bently Nevada. This module is mainly used in mechanical condition monitoring systems, especially in the protection and monitoring of rotating machinery. This module is part of the 3500 mechanical protection system and is used to transmit key signals to the monitor module in the 3500 frame.
The key phase module is mainly used to detect the alignment between the key phase mark and the key phase sensor of the rotating machinery. When these marks are aligned, the module uses a magnetic sensor or proximity probe to detect the situation and converts the input signal into a numeric key trust signal. For a regular setup, the 3500 mechanical protection system can accept up to four key trust numbers, while in a paired configuration, it can accept eight.
3500-25-149369-01 enhances Keyphasor signal processing and maintains full backward compatibility with existing Keyphasor modules, meaning it can be used in older systems without major changes. In addition, this module completely replaces previous modules such as PWA 125792-01.
In triple module redundancy (TMR) applications that require system key phase input, the 3500 system should use two such key phase modules. These two modules run in parallel, providing primary and secondary keys to other modules in the rack.
Overall, the 3500-25-149369-01 is a very important component for ensuring the safe and efficient operation of rotating machinery, especially in critical applications that require precise monitoring and protection.
3500-25-149369-01 The advantages of the enhanced bond phase module include:
High reliability: The module has been rigorously designed and tested to ensure stable operation even in harsh industrial environments. It uses high-quality electronic components and materials to provide outstanding durability and stability.
Powerful signal processing: 3500-25-149369-01 provides enhanced Keyphasor signal processing for accurate and fast detection of alignment between key phase markers and key phase sensors. This capability enables it to provide accurate monitoring results in complex industrial environments.
Backward compatibility: Although the 3500-25-149369-01 is an improved module, it still maintains full backward compatibility with the existing Keyphasor module. This means that it can be used in older systems without the need to make major changes or replace other components. This compatibility provides users with greater flexibility to easily integrate new modules into existing systems.
Easy installation and maintenance: The 3500-25-149369-01 module has been designed with ease of installation and maintenance in mind. It uses standardized interfaces and connections, making the installation process simple and fast. At the same time, its modular design also makes maintenance easier, allowing for rapid replacement of failing modules and reducing downtime.
Scalability: In Triple module redundancy (TMR) applications that require system key phase input **, the 3500-25-149369-01** can run in parallel with other key phase modules to provide primary and secondary key trust numbers to other modules in the rack. This scalability allows the system to be flexibly configured and expanded according to the actual needs.
In summary, the 3500-25-149369-01 Enhanced bond phase module has the advantages of high reliability, strong signal processing, backward compatibility, easy installation and maintenance, and scalability.
