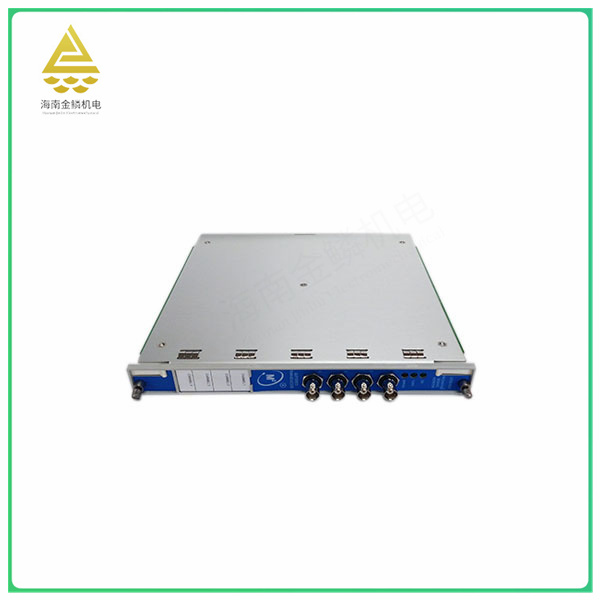

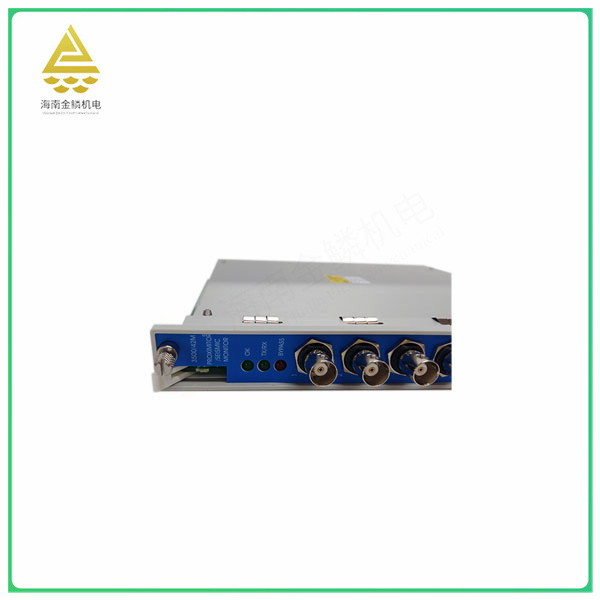

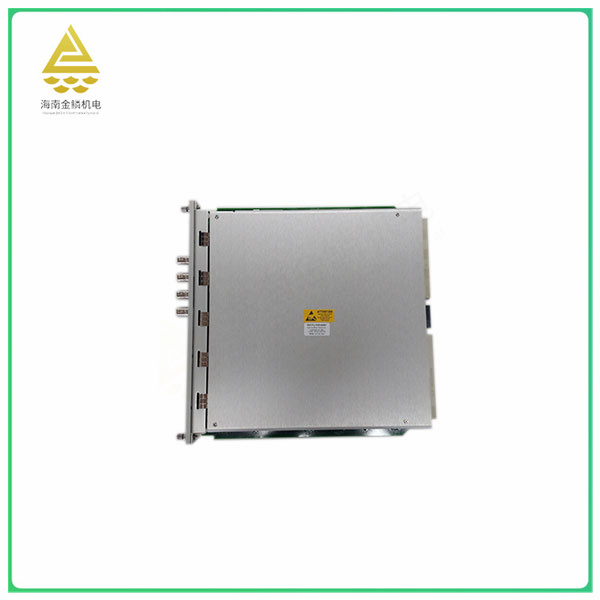

The 3500/42M 176449-02 is a four-channel monitor module produced by Bently Nevada (now part of GE Detection & Measurement). It is mainly used for vibration monitoring of large rotating machinery, such as steam turbine, compressor, water pump and so on. The module receives input from proximity sensors and seismic sensors, modulating the signal to provide a variety of vibration and position measurements.
Four-channel monitoring: The module has four independent channels that can simultaneously monitor four different parameters, such as radial vibration, thrust position, expansion difference, eccentricity, etc.
Signal adjustment: The module can adjust the received signal to suit different measurement needs. This includes signal processing functions such as filtering, integration, and differentiation.
User programmable alarm: Each channel can alarm according to the alarm threshold set by the user. When the monitoring parameter exceeds the set threshold, the module will send an alarm signal so that timely countermeasures can be taken.
Use with 3500 Framework Configuration software: Users can use 3500 Framework configuration software to program and configure each channel to meet specific monitoring needs.
Mechanical protection: The module is able to provide mechanical protection by continuously comparing the alarm Settings of monitoring parameters and configurations. When abnormal conditions are detected, it can issue alarms in time to help prevent equipment damage and failure.
Wide range of applications: 3500/42M 176449-02 widely used in power generation, chemical, metallurgy, petroleum, cement, paper and other different industrial sectors.
The application scenario of 3500/42M 176449-02 is very wide, mainly used in various industrial fields, including but not limited to power generation, chemical, metallurgy, petroleum, cement, paper and other sectors. This module is particularly suitable for monitoring the vibration of large rotating machinery such as steam turbines, compressors, water pumps, etc.
Specifically, it can monitor the parameters of axial vibration, tile vibration, expansion, swing, eccentricity, axial displacement, housing expansion, etc., which is of great significance for ensuring the safe and stable operation of the equipment. In power system, it can be used to monitor and control voltage, current, power and other parameters. In the chemical industry, it can be used to monitor and control temperature, pressure, flow and other parameters.
In addition, the module also has high performance and stable network interface, support Ethernet protocol, high bandwidth, long distance transmission and anti-interference advantages, suitable for applications requiring reliable and high-speed data transmission. It is also compatible with common network devices and systems, such as switches, routers and servers, and can be seamlessly integrated and used with existing network infrastructure.
Overall, the 3500/42M 176449-02 is a powerful, flexible and reliable monitor module for a wide range of applications where the vibration and condition of large rotating machinery needs to be monitored.
