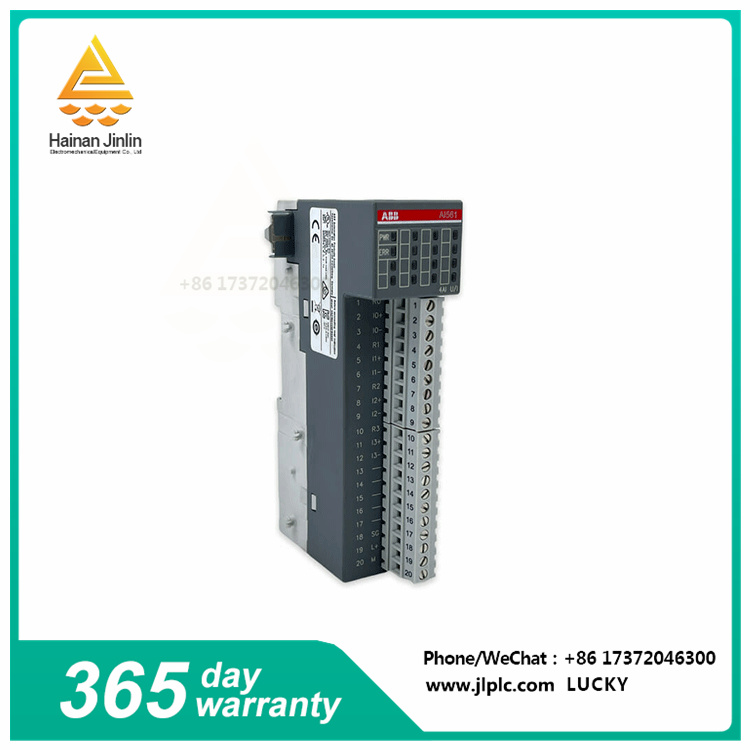

Extended product type: AI561
Product ID: 1TNE968902R1101
ABB model name: AI561
EAN: 6943747170152
Directory Description: Analog input module. 4 Artificial Intelligence: U, I (AI561)
Description: AI561: S500-eCo analog input module. 4 AI: U and I. 1 lines.
Net weight: 0.12 kg
Net product thickness/length: 135 mm
Features:
The AI561 is designed to convert analog signals from sensors and sensors into digital signals that the PLC can understand and process. This allows the PLC to monitor real-world physical parameters such as temperature, pressure, flow, or voltage.
Features:
4 analog input channels: The AI561 can accept analog signals from up to four different sensors simultaneously.
Supports voltage and current input: It can be configured to work as a sensor for output voltage signals (e.g., 0-10V) or current signals (e.g., 4-20mA).
Compact design: The AI561 is a small module designed to save space when installed in the control cabinet.
Easy integration: It integrates seamlessly with other CompactLogix 5000 modules to form a complete control system.
Applications:
The AI561 is used in a variety of industrial automation applications where monitoring analog sensor data is critical. Here are some examples:
Factory automation: Monitor the temperature of the oven, the pressure of the hydraulic system, or the flow of the conveyor belt.
Building automation: Monitoring temperature, humidity and carbon dioxide levels in HVAC systems.
Process control: Monitoring pressure levels, flow and liquid levels in chemical or food processing plants.
