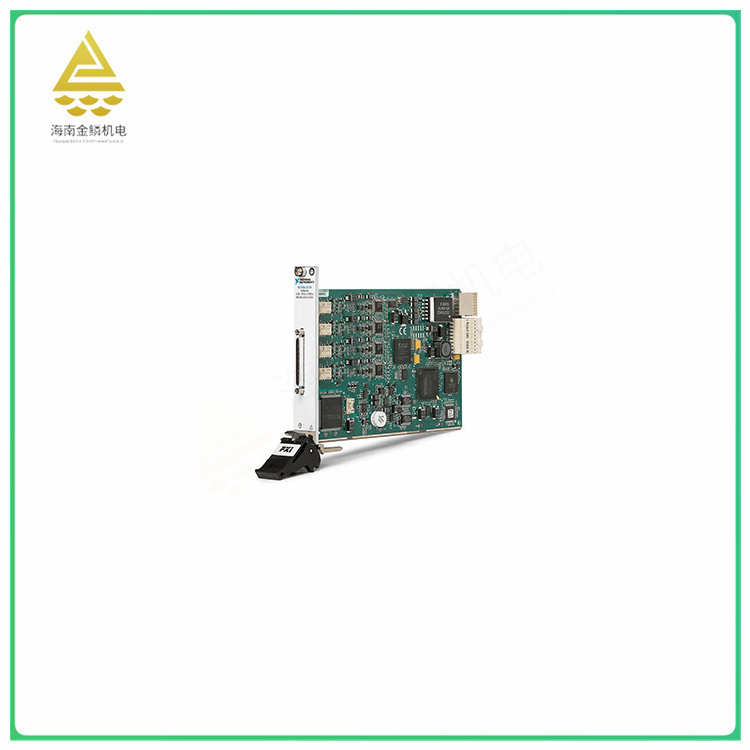

The PXIe-6124 is a multi-functional DAQ device based on the PXI Express bus, which has the multi-function feature of synchronous sampling. The module provides 4 analog inputs with 16-bit resolution and a sampling rate of 4 MS per second per channel. In addition, it has 2 analog outputs with update rates of 4 MS and 2.5 MS per second per channel. The module also features 24 digital I/O lines and 2 32-bit counters. The PXIe-6124 supports analog and digital triggering, and offers Ni-DAQMX driver software and NI LabVIEW SignalExpress interactive data logging software for easy configuration and measurement. It is widely used in the fields of IF digitization, instantaneous recording, ISDN, ADSL and POTS manufacturing testing in the communications industry, ultrasonic and sonar testing, and high energy physics.
The PXIe-6124 has a variety of application scenarios, including:
If digital testing: The PXIe-6124's analog input and digital I/O capabilities make it suitable for IF digital testing, such as for data acquisition and control in ISDN, ADSL and POTS manufacturing tests in the communications industry.
Instantaneous recording: Due to its high-speed sampling rate and digital I/O line, the PXIe-6124 can be used for instantaneous recording, such as ultrasonic and sonar testing and signal acquisition and recording in high-energy physics experiments.
Digital trigger: The PXIe-6124 supports digital trigger and can be used in a variety of applications requiring digital trigger, such as device testing in automatic test equipment (ATE).
In addition, the PXIe-6124 is suitable for other applications requiring high-speed data acquisition, high-precision measurement and flexible control. Note that the specific application scenario should be selected based on device features and requirements.
It is a multifunctional DAQ device for data acquisition, analog signal input and output, digital I/O, and counter functions. These functions can be applied in a variety of different protocols, depending on the user's application requirements and system configuration.
For example, in the testing of the communication industry, users can use PXIe-6124 to collect and output signals, and test with corresponding protocols. In other applications, users can also configure and use PXIe-6124 as needed to meet specific protocol requirements.
