Brand: ABB
Product number: V18345-10105510013

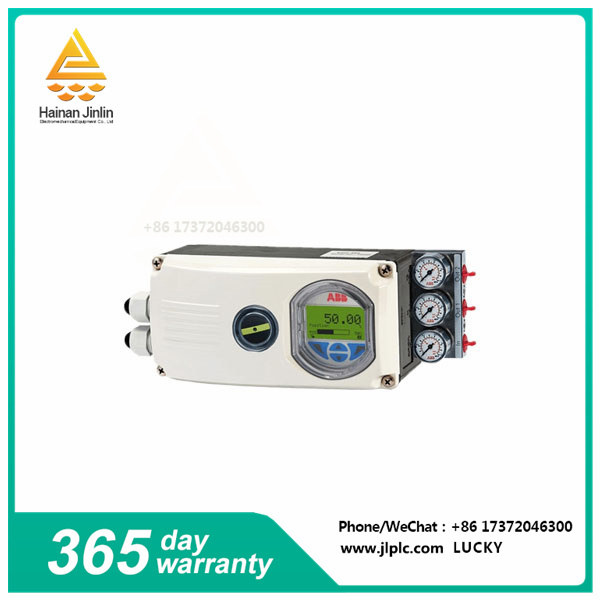

Product Model: TZIDC-120 Intelligent locator: V18345
Optional mechanical kit for digital position feedback: 1 -
The housing is made of aluminum, painted, protection class IP 65 (NEMA 4X) and is designed for mounting on linear actuators according to DIN/IEC 534 / NAMUR or rotary actuators according to VDI/VDE 3845, or for integral mounting
Input/communication port: 1 - Input 4... 20 mA, two-wire with connector plug for LKS adapter
Explosion-proof rating: 0 - None
Output/safety position (in case of power failure) : 5 - double action, failure freeze
Connection: 5 - Cable: thread M20 x 1.5; Air pipe: thread 1/4-18 NPT
Optional modules for analog or digital position feedback: 1 - Plug-in modules for analog position feedback (symbol range 4... 20 mA)
Optional mechanical kit for digital position feedback: 0 - No
Design (varnish/coding) : 1 - standard
Shipping weight: 5 Kg
V18345-1010551001 During operation, the module receives engineering unit output data from the bus interface unit
(BIU). It scales this data according to its calibrated and configured scaling parameters, and then
Convert the data to an output current in the range of 0 mA to approximately 20.48 mA.
V18345-1010551001 If the scaled data is lower than the minimum limit of the DTO, the module will
The output current is 0 mA. If the scaled data exceeds the maximum limit of the digital modulus
Converter, this module sets the output current to approximately 20.48 mA.
