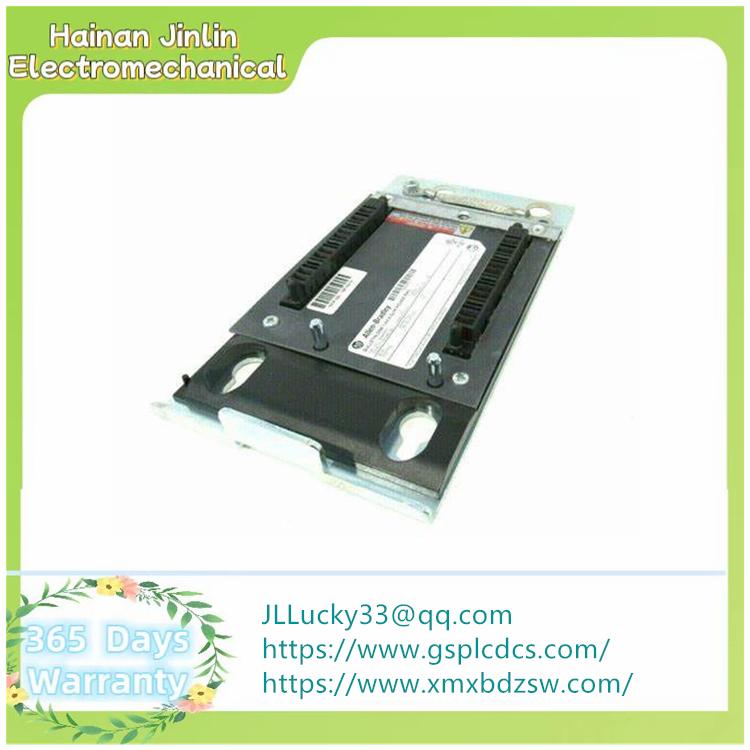

2094-PRS7  | 2094-PRS5 Rockwell Automation

Part Number/Catalog number: 2094-PRS7 series

Manufacturer: Rockwell Automation

Brand: Alan Bradley

Dimensions: 561.3 mm (22.10 in) x 480.1 mm (18.90 in) x 266.7 mm (10.50 in)

Module capacity: 1 IAM module and up to 6 additional modules

Module type: Ultra-thin power rail

Application: 230 or 460 volt drive system

Number of axes: 7 axes

Weight: 8.8 pounds (3.99 kg)

Technical specifications for 2094-PRS7

Product Announcement: 2094 Kinetix Drive System

Compatible modules: Integrated shaft module (IAM), shaft module, shunt module, slot filler

Torque: 5.08 nm (45.0 lb • in)

Installation hardware: M6 metric (1/4x20) bolts

Recommended subpanels: Galvanized (unpainted) steel

Components Components: One braided 100 mm (3.9 in) ground strip protective cover (one for each power rail connector) These installation instructions, publication 2094-IN003

Nooooo. Axis: Seven (7) axes

Drive system voltage: 230V / 460V

Power rail type: Slim

Product description: Power rail

The 2094-PRS7 works with 230V or 460V drive systems. It has a module capacity of one (1) integrated shaft module (IAM) and six (6) slots for add-on modules, which can be a combination of Axis modules, shunt modules and slot fillers.

The power rail is equipped with a 100 mm (3.9 in) braided ground strip and protective cover for each power rail connector. In order to improve the bonding between the housing mounting plate and the power rail, it is best to use galvanized or unpainted steel.

When installing 2094-PRS7 mounting rails, do not remove connector pins during installation. Specifically, avoid metal debris entering this part of the power rail, as these debris may short-circuit the conductor pins, further causing damage to the module circuit. Vacant power rail slots can also be fitted with slot filler. Slot fillers are just modules without electronic circuits. It is sometimes called a virtual module and its main purpose is to protect the bare slots of the power rail.
