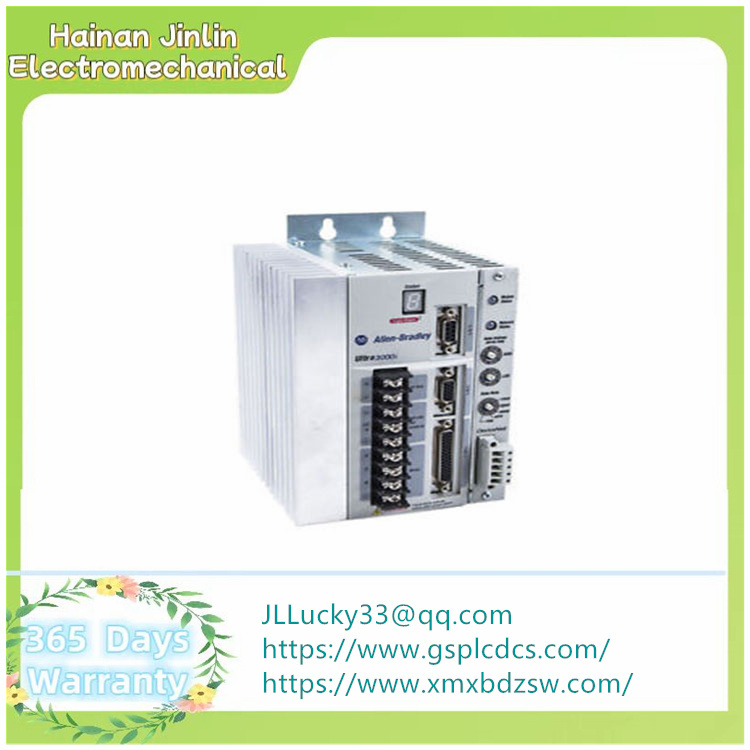

Part Number/Catalog number: 2098-DSD-005X-DN
Brand Allen Bradley
Series Ultra 3000 drive
Part Number/Catalog number: 2098-DSD-005X
Output current (intermittent) : 7.5 amps (0 peak)
Index support
Output current (continuous) : 2.5 amps (0 peak)
Output current (intermittent) : 2.5 amps (0 peak)
Auxiliary power: No
Output current (continuous) : 7.5 amps (0 peak)
Rated input current (AC) : 5 amps root mean squared
Input frequency (AC) : 47-63 Hz
Input frequency (AC) : 47-63 Hz
Energy absorption capacity, @ 115 VAC: 93 joules
Input voltage (AC) : 120-240VAC rms, 1 phase
Bus capacitance 1410? F
Energy absorption capacity, @ 230VAC: 38 joules
Sercos: Yes
Bus overvoltage: 400 volts DC
Compatible servo motors: MP series, 1326AB, F, H, N and Y series
Diverting on: Not applicable
Size: Not applicable
Weight: 7.8 x 5.68 x 2.86 inches (198.12 x 144.27 x 72.64 mm)
Feature: Index
Internal shunt resistance: Not applicable
