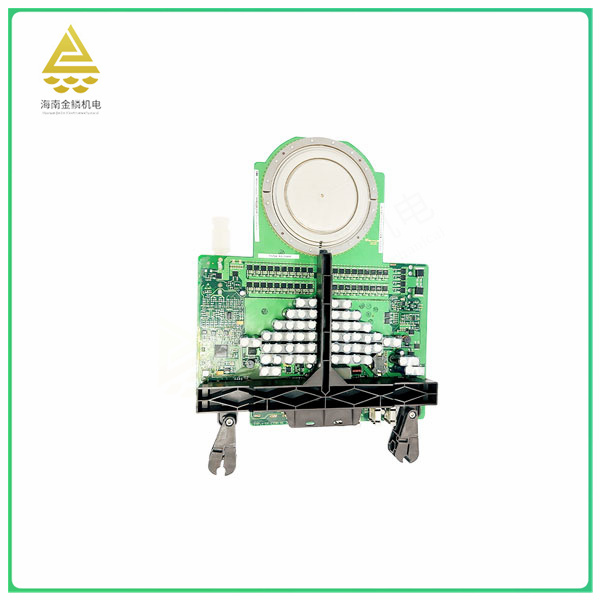

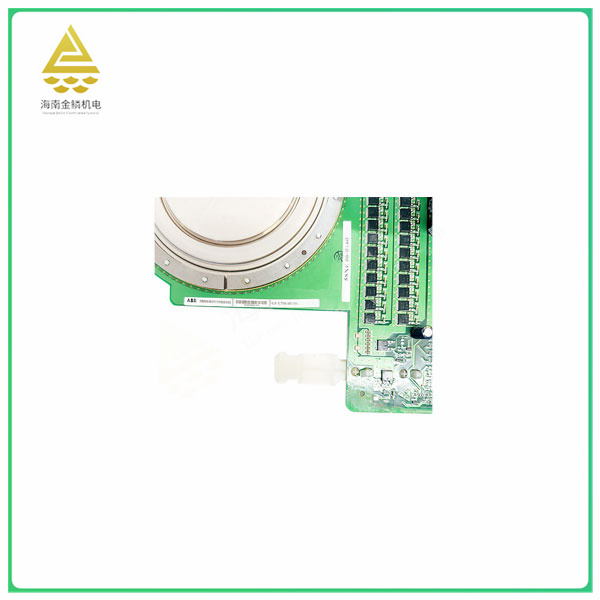

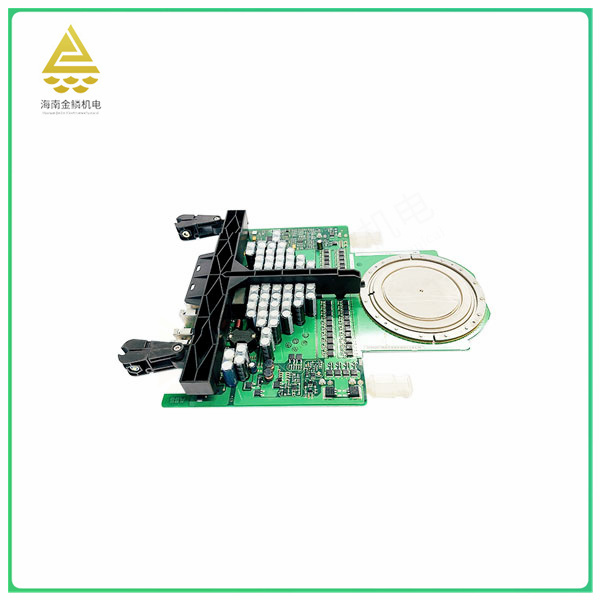

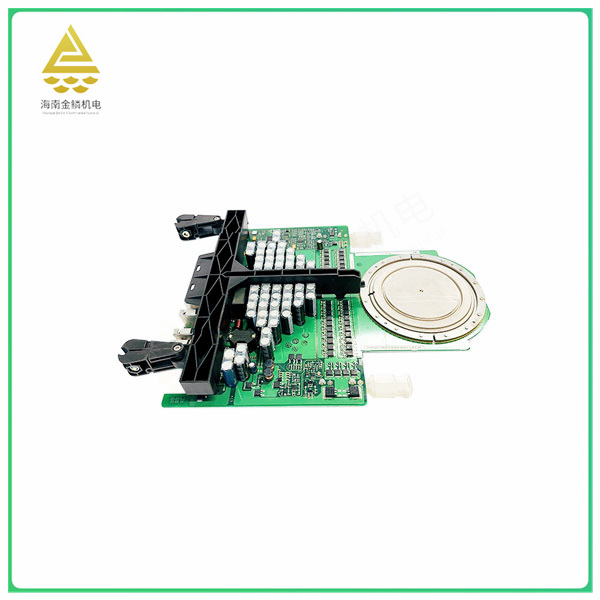

The 5SHX1960L0006 is an IGCT (Integrated Gate commutated thyristor) module with the following features and functions:
Features:
High reliability: High quality materials and reliable design ensure reliability and stability under various environmental conditions.
High-power carrying capacity: It has a high power carrying capacity and is suitable for a variety of high-power load or power equipment control applications.
Thyristor control function: It may have the control function of thyristor to achieve accurate control and regulation of the power system or circuit.
Features:
Power control: As an IGCT module, the 5SHX1960L0006 can be used for the control and regulation of power systems to achieve precise voltage and current control.
High power applications: Suitable for a variety of high power loads or power equipment control applications, such as DC/DC converters, inverters, power supplies, etc.
Fast response: Due to its high switching speed and low on-voltage drop, the 5SHX1960L0006 can achieve fast response and control of the power system.
Protection function: It may have over-voltage, over-current and other protection functions to ensure the safe operation of the power system and equipment.
IGCT (Integrated Gate commutated thyristor) module is a kind of high-power semiconductor switching device which integrates GTO chip with anti-parallel diode and gate drive circuit. It combines the benefits of GTO and IGBT with faster switching speeds, higher reliability, enhanced drive capability and higher integration.
The core part of the IGCT module is the GTO chip, which has the PNPN structure and is the same as the GTO. The on and off of IGCT depends on the reverse and positive bias of gate and cathode. When the gate and cathode are reversed, the turn-off gain is equal to 1, which is less than GTO. However, the driving current of IGCT is not large.
IGCT modules have the following features:
High-speed switching: IGCT has a faster switching speed, more than 10 times faster than ordinary GTO, which can simplify (eliminate) the large and complex buffer circuit in ordinary GTO applications.
High integration: The IGCT module integrates the GTO chip, the anti-parallel diode and the gate drive circuit, and has a high integration degree, which can reduce the system volume and cost.
High efficiency: The IGCT module has a low on-voltage drop and a high switching efficiency, which can improve the energy utilization of the power system.
High reliability: With high quality materials and reliable design, IGCT modules offer high stability and reliability for high power applications in a variety of harsh environmental conditions.
Easy to use: IGCT module can directly replace ordinary GTO devices, easy to use, excellent performance.
In short, IGCT module is an efficient, reliable, high-speed, highly integrated semiconductor switching device, suitable for a variety of high-power application scenarios, such as power conversion, motor control, new energy and so on.
