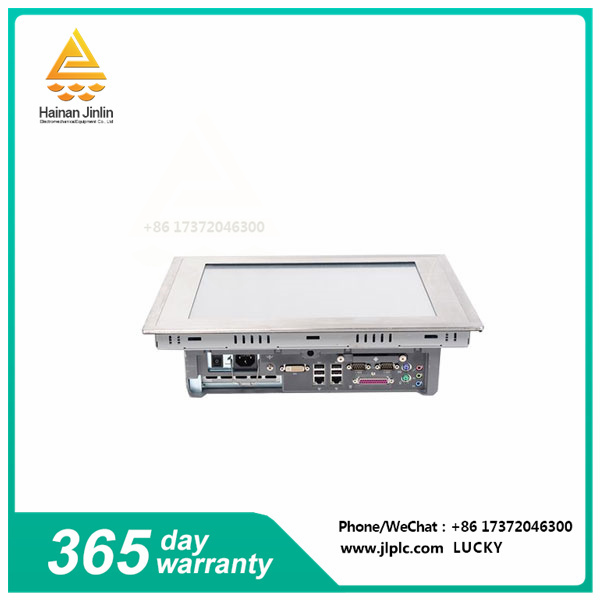

6181P-15TPXPSS Industrial computer Features an integrated display and stainless steel bezel

The 6181P-15TPXPSS VersaView 1500P Integrated Display computer is a rugged industrial computer with an integrated display and stainless steel bezel designed for use in factory environments for visual interface, control and maintenance in many automated industrial applications. It offers a 12.1-inch color active matrix, thin-film transistor, flat touch display with a display area of 12 inches x 9 inches, a native resolution of 1024 x 768, and a color of 16.7M. The 6181P-15TPXPSS offers 40 Angle views o and 60o are vertical and horizontal, respectively, and the computer has a minimum display response time of 15 milliseconds. It features an Intel Core Duo U2500 processor with a processor speed of 1.2 GHz and a 2M L2 cache. It also features a dual-channel DDR2 memory slot with a maximum installed memory of 4GB, and also has 2 PCI slots that can be upgraded to 1 PCI slot and 1 PCI Express slot. The computer has 2 (1 bootable and 1 hot swappable) compact flash memory slots, is fitted with a 40GB 2.5-inch SATA rotary hard drive, and is equipped with an ultra-thin DVD-RW/CD-RW drive.

The 6181P-15TPXPSS features a PS/2 mouse/keyboard port, a parallel port, a DVI-I port, four rear USB ports, two serial COM ports, an audio line input/line output, a microphone slot, and a 2GB Ethernet /IP LAN port. It operates in a temperature range of 0-55oC (32-131oF), in a range of 10-90% non-condensing relative humidity, and can store oC (-4-140 Type o) in a range of -20-60. The computer has a NEMA Type 1, 4, 12 and IEC IP66 grade housing. It can resist 15G of shock and 1G of vibration, with a frequency of 57-640Hz. With an average weight of 10.7 kg (23.6 lb) and dimensions of approximately 309 mm x 410 mm x 100 mm (12.16 inches x 16.14 inches x 3.94 inches), it can operate at heights of up to 6,561 feet without derating.
