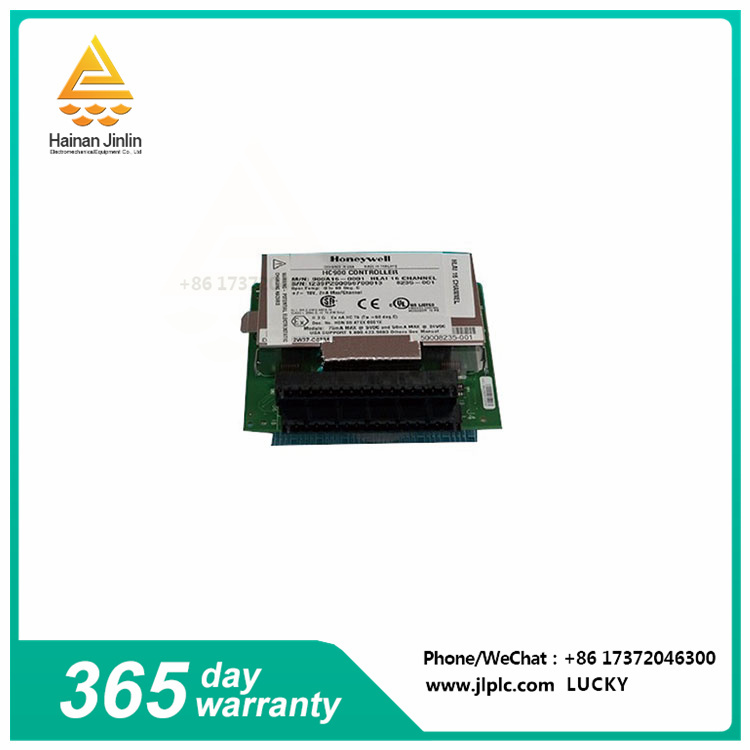

Brand/Manufacturer: Honeywell
Size: 13.2x15.2x3.2 cm
Weight: 0.22 kg
Country of origin: USA
Description: Analog input 16 channels
The RTP and cable are designed to be permanently installed in their own housing. Install the RTP cable assembly to platform 900
Remove the appropriate key piece from the terminal for fitting to the module. For more information, see the Installation and User manual (51-52-25-154).
Connect the required cable to the AO module on the IO rack. Choose from: 900RTC-L210 Remote terminal low voltage cable assembly, 1.0m long 900RTC-L225 remote terminal low voltage cable assembly, 2.5m long 900RTC-L250 remote terminal low voltage cable assembly, 5.0m long
Attach the AO module label to the module connector cover.
Connect the shielded drainage cable to the ground bar at the bottom of the I/O rack. All on-site wiring shields must be grounded. For more details about shield grounding, see the "Shield Grounding" section in the Installation and User Manual (51-52-25-154)
