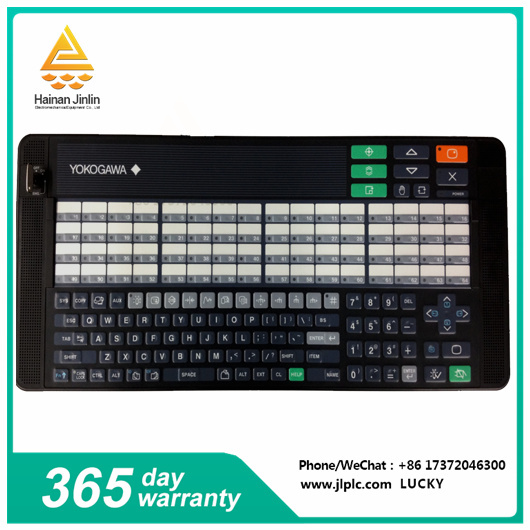

The AIP830-101 is a YOKOGAWA product with the following features:
Type: This is a tablet keyboard with dust and drip-proof features and integrated USB speaker functionality.
Interface: It uses USB Type A interface connector, supports USB2.0 (full speed bus power) for operating keyboard functions, and supports USB1.1 (full speed bus power) for sound functions.
Sound features: The AIP830-101 is equipped with a separate USB speaker instead of the traditional buzzer sound, providing a clearer and richer sound experience.
Power supply: It can get 5V±5% input voltage from a PC with a USB port, and the large consumption current is 1A.
Size and weight: Depending on the configuration (with or without VESA bracket), it weighs between 2.0kg and 2.5kg.
Color: The case color of the AIP830-101 is black (equivalent to the Munsell N1.5), while the paint color of another similar model, the AIP827, is frost white (Munsell No. 2.5Y8.4/1.2).
Working environment: It can work normally at an ambient temperature of 5~40℃.
In addition, AIP830-101 can be used in conjunction with software, such as R3.03 or later. At the same time, its event logging DI825 input module can be used for event logging (SOE), where a change signal on a digital input channel can be announced along with a timestamp indicating when an event occurred, with a resolution of 0.4 ms.
