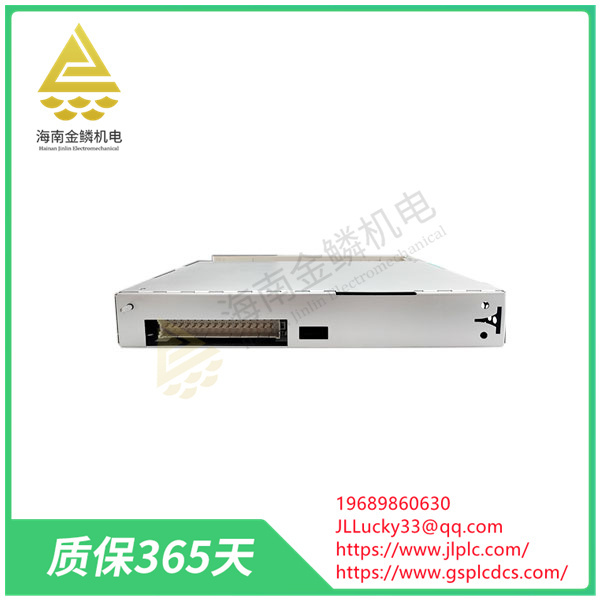

Model: AIS810
Item number: 3BSE078762R1
Category: Analog input signal conditioning module
Finish: New, not new
Warranty: One year
Brand: ABB
dimension
Width 77.9 mm
Depth 105 mm
Height 9.8 mm
Weight (including base) 73g
Signal Specification 4... 20 ma
0... 20 ma
Hart, yes.
Detailed HART information HART v7, HART pass-through and HART variables to applications
Select I/O is an Ethernet networked single-channel granular I/O System for the ABB Ability™ System 800xA automation platform. Select I/O helps decoupage project tasks, minimizes the impact of late changes, and supports the standardization of I/O cabinets, ensuring automation projects are delivered on time and on budget. The Signal Conditioning Module (SCM) performs the necessary signal conditioning and power supply for connected field devices in an I/O channel.
The AIS810 is an analog input signal conditioning module (16-bit) that supports 2/4-wire devices and HART communication.
Characteristics and advantages
Analog input for 2-wire or externally powered 4-wire field devices
Signal range: 4... 20 mA and 0... 20 mA
Can be used in dangerous areas
Transmitter power current is limited to 30 mA
16-bit A/D converter resolution
Current isolation between channels
Hardware filter, rise time 1ms
The software filter can be configured by parameters
Prevent miswiring
Configurable software filters
Diagnosis:
Loop monitoring (open and short)
Hardware error monitoring
Communication supervision
Low equipment failure, below range, over range and high equipment failure detection rate
Internal power supervision
Support for HART field devices (up to HART Application Layer Revision 7) :
HART through
Loop reads a maximum of two HART device variables
HART device validation
Single cycle granularity - Each SCM processes a single channel
Supports hot swap
Mechanical locking slider to turn off field equipment power and/or output before disassembly
Field disconnect function to isolate field loop wiring from SCM electrical during commissioning and maintenance
All SCMS have electronic current limits
Mechanical keying prevents the wrong module type from being inserted after debugging
The Modulebus provides 24V DC power
This parameter can be configured
The LED indicator on the SCM indicates the operating status of the module.
