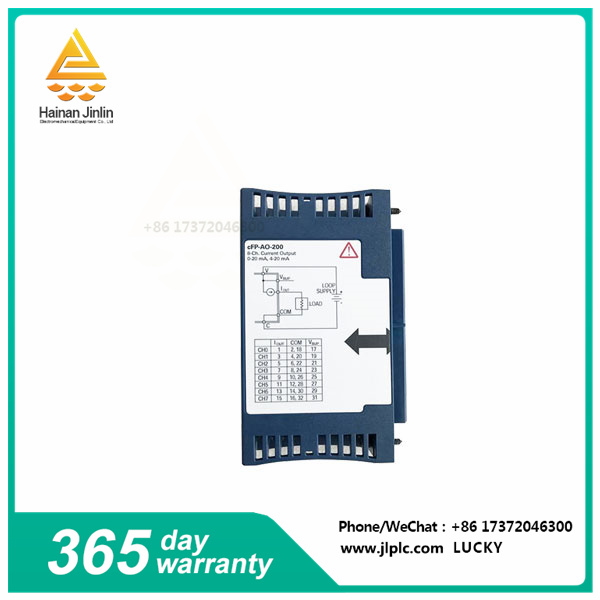

CFP-AO-200 Analog output module Each channel can be configured individually

The cFP-AO-200 (Part number: 777318-200) contains an open position for wiring and sensor investigations and provides short circuit insurance for wiring errors. Each channel can be configured individually. To reduce setup and setup requirements, the National Instruments cFP-AO-200 highlights HotPnP (Assembly and Playback) tasks, so it is recognized and distinguished by orchestration programming. With the cFP-AO-200 module, the user can connect directly to the mechanical actuator or the unit under test and obtain high-precision power. The I/O module adjusts and scales building units based on sensor signals, while also performing self-diagnostics to search for problems with the module or wiring, such as open momentum circles. The update rate of the NI cFP AO 200 module is 200 Hz. Typically, the information throughput of a controller or PC depends on the product cycle speed and the system speed.

The module contains eight simple yield output channels of 0 to 20 mA or 4 to 20 mA (overrange 0.5 mA), generated by a 12-bit DAC with an update rate of 200 Hz. Each yield channel contains an inspection circuit and LED marker for opening current coil positioning. The NI cFP-AO-200 requires an external power supply that can provide 5 to 24 VDC. It has short circuit protection and 2,300 Vrms transient overvoltage protection between the intermodule communication bus and the I/O channel. NI devices have a maximum conversion rate of 200 updates per second and a conversion rate of 0.4 mA per microsecond.

The compact FieldPoint module includes implicit power transmission to provide different power associations on the module. A field wired power supply associated with voltage (V) and normal (C) terminals is internally associated with a power cycle transmission that provides additional branch terminals for voltage supply (VSUP) and normal (COM). These terminals provide a useful way to spread out capacity to handle gadgets that require external power. The device weighs 3.7 ounces and measures 5.00 x 2.60 x 0.94 inches. In the physical dimension. It has a recommended operating temperature range of -40 to 70 °C and a storage temperature range of -55 to 100 °C.
