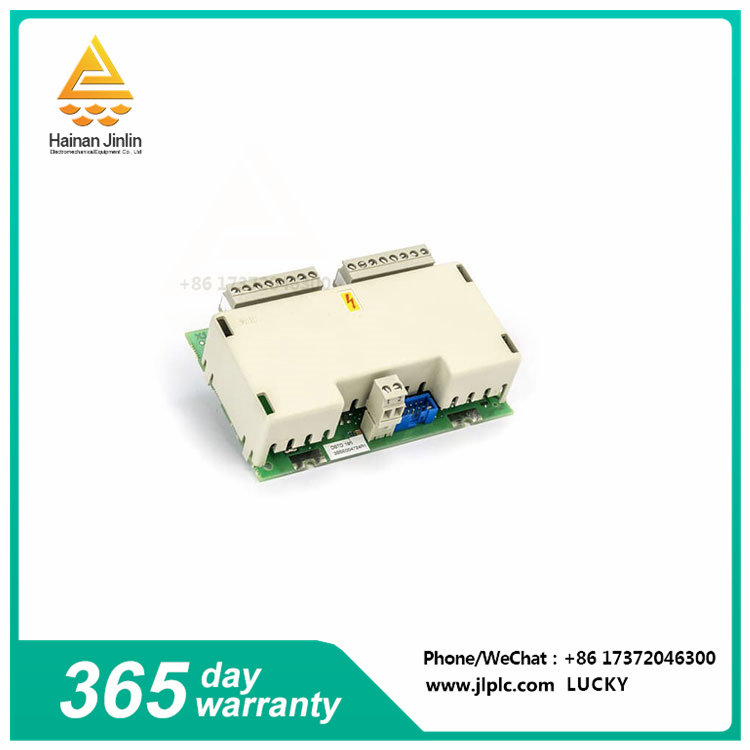

The DSTD108LP-3BSE018335R1 is an industrial automation application connection unit manufactured by ABB, a leading supplier of industrial automation and power technology.
Here's a breakdown of its features and key points based on the information found earlier:
Features:
The DSTD108LP-3BSE018335R1 helps connect various devices in industrial control systems. It acts as an intermediary between the control system and field devices (sensors, actuators, etc.).
Main features:
Compact design: With dimensions of 100 x 50 x 30 mm, the unit offers a space-saving solution for dense control cabinets.
Electrical connections: Terminals for connecting the power supply, signal lines from sensors and actuators, and communication lines to the control system are provided.
Potential isolation: Electrical isolation is provided between field device signals and control system signals to prevent electrical noise or ground faults from affecting either side.
Panel mounting: May be designed for panel mounting using standard 35 mm DIN rails for easy integration into industrial control cabinets.
Applications:
The DSTD108LP-3BSE018335R1 can be used in a variety of industrial automation applications that require connectivity between control systems and field equipment. Here are some examples:
Process control systems: Connect sensors (temperature, pressure, flow) and actuators (valves) to monitor and regulate industrial processes.
Machine control: Connects with buttons, limit switches and other sensors, and controls motors, valves and solenoid valves in the machine.
Data acquisition systems: Collect sensor data from a variety of sources for monitoring, analysis and recording purposes.
