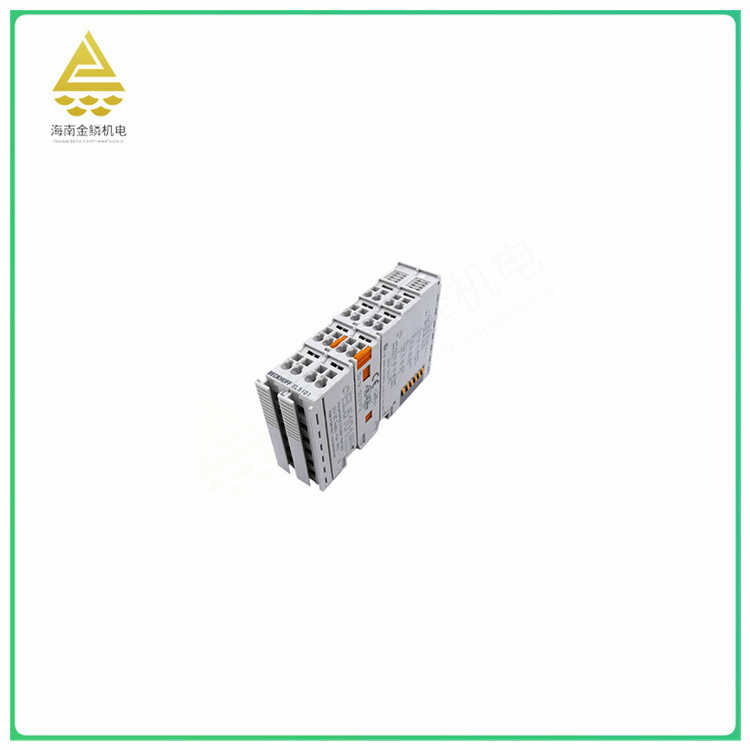

The EL5101 is an EtherCAT interface terminal module for connecting incremental encoders directly to differential signals (RS422) or TTL single-ended signals. The module features an input frequency of up to 1 MHz that can be evaluated, two 24 V digital inputs for storing, blocking and setting the counter state, error message output from the encoder that can be connected and evaluated through the state input, and 5 V and 24 V power supplies from the encoder that can be supplied directly through the terminal connection point.
In addition, the EL5101 has the following features:
Integrated frequency and period measurement: Optional as a 5 V up/down counter with micro-increment to provide more accurate shaft position for dynamic shafts.
The high-precision EtherCAT Distributed Clock (DC) synchronizes the reading of encoder values and other input data in the EtherCAT system.
Save, lock, set counter and other functions.
The timestamp on the edge of the last registered increment.
Overall, the EL5101 is a powerful and reliable EtherCAT interface terminal module for a variety of industrial automation applications where incremental encoders need to be connected.
The EL5101 is an interface module for directly connecting incremental encoders with differential inputs or single-ended inputs. It is mainly used in the following application scenarios:
Motor control: The EL5101 can be used for precise control of the motor. By connecting the incremental encoder, the speed, position and direction of the motor can be monitored in real time to achieve accurate motor start, stop, speed adjustment and other control operations.
Motion control: The EL5101 can be used in a variety of motion control applications, such as CNC machine tools, packaging machinery, robots, etc. By connecting incremental encoders, precise position control and motion trajectory planning can be achieved to improve the accuracy and efficiency of machining and assembly.
Measurement and testing: The EL5101 can be used for a variety of measurement and test applications, such as length, Angle, speed measurement, etc. By connecting incremental encoders, high precision measurement and testing can be achieved to ensure product quality and production efficiency.
Automated production line: EL5101 can be used for the control and management of automated production lines, through the connection of incremental encoders, real-time monitoring of the operating status and position of various equipment on the production line, to achieve automatic control and optimal management.
In summary, the EL5101 is suitable for a variety of industrial automation applications that require connected incremental encoders to improve the accuracy, reliability and productivity of automation equipment.
