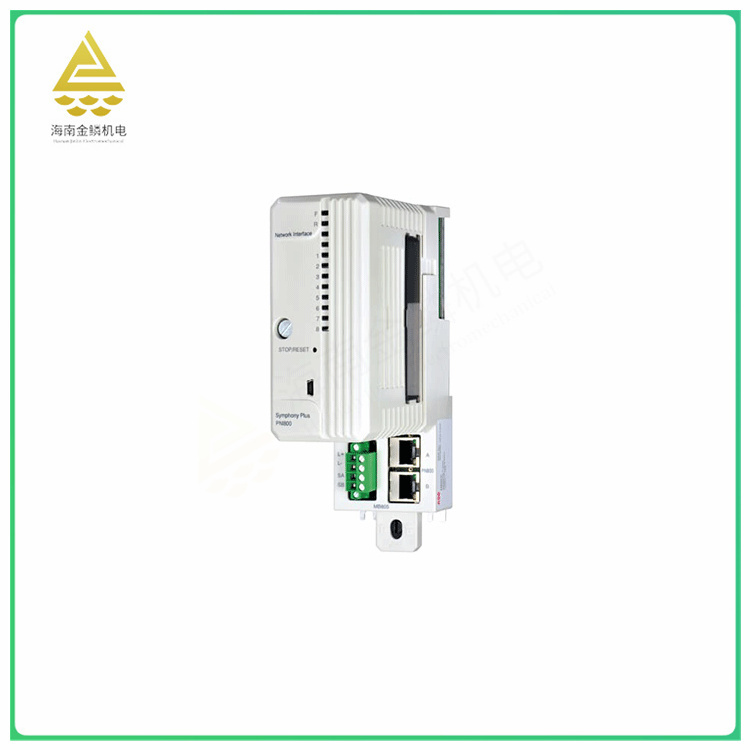

The ABB PNI800 module is a factory network interface module that seamlessly integrates with a wide range of industrial control systems. It can realize efficient data exchange and communication between different devices, so that the whole system runs smoothly and reliably.
Product parameter
Input voltage :24V DC
Operating temperature :-40℃~ +85℃
Communication interface: Ethernet, Modbus, TCP/IP
Power consumption :5W
Overall dimensions :100mm × 75mm × 35mm
The PNI800 is a factory network interface module provided by ABB for use in the DIN Rail CIU (Communication Interface Unit) of the Symphony Plus system. The PNI800 has a variety of functions and features that make it an important component in industrial automation and control systems.
First, the PNI800 supports redundancy, which means that there can be multiple PNI800 modules in the system to improve the availability and reliability of the system. If one module fails, the other modules can take over its tasks and ensure the continuous operation of the system.
Secondly, PNI800 has rich communication interfaces, such as RS485 and PROFIBUS. This allows it to easily exchange data and communicate with other devices or control systems. Through these interfaces, the PNI800 can be connected to two Ethernet lines, providing greater communication bandwidth and reliability.
In addition, the PNI800 has a user-friendly, intuitive and ergonomic operating panel. This makes operation and maintenance simple and convenient. At the same time, the PNI800's compact size saves space and is suitable for use in limited installation environments.
PNI800 is suitable for various industrial automation control applications such as PN800 systems. It can be used with a variety of devices, such as the Composer communication server and PDP800. Each PNI800 can support up to 8 PDP800, and each PDP800 can support up to 64 slave devices. This flexible configuration enables the PNI800 to meet industrial automation needs of different sizes and complexity.
Overall, the PNI800 is a high-performance, highly reliable factory network interface module for a variety of industrial automation and control systems. Its redundant design, rich communication interface and user-friendly operation panel make it an important choice in the field of industrial automation. When choosing and using the PNI800, it is recommended to make trade-offs and decisions based on specific application requirements and scenarios, and refer to the relevant product manuals, technical specification sheets, or contact the manufacturer's technical support team for accurate information and technical support.
