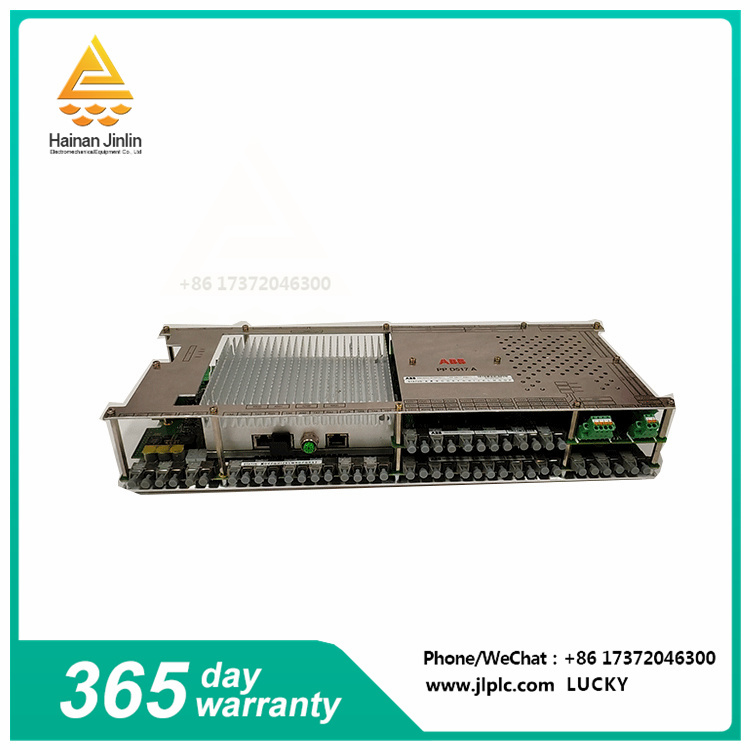

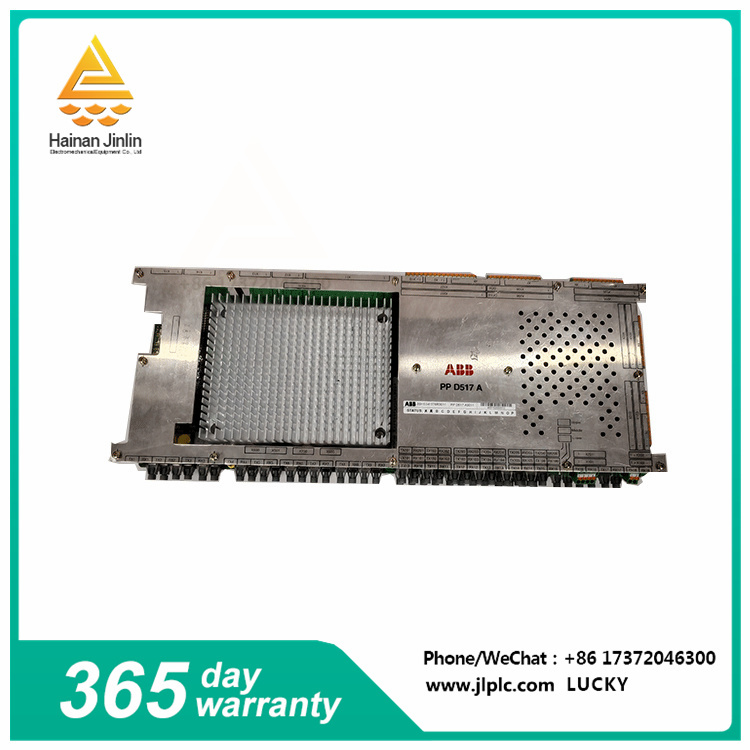

ABB PPD517A3011 is an excitation central controller module designed for use in power systems. The module is part of ABB's Modbus Plus system, which is known for its high-speed, point-to-point communication capabilities. Modbus Plus allows various devices, including hosts, controllers, and data sources, to communicate as peers throughout the process, simplifying applications and reducing installation costs. This communication can be achieved through a low-cost twisted pair cable connected to the network or an optional fiber optic cable.
Modbus Plus operates at 1 Megabyte for fast access to process data. One of its main advantages is the ability to control I/O and drives without performance degradation due to load or traffic. This makes it particularly suitable for applications where fast data access and control is critical.
The module supports Modbus Plus, which is a deterministic token passing network. This means that it can efficiently manage a large number of requests, depending on various factors such as module port capacity, CPU architecture limitations, and CPU com server limitations. These limitations may affect the maximum number of requests a module can handle at any given time.
The controller precisely controls the excitation current to regulate the voltage, reactive power, and other parameters of a generator or other excitation equipment. This helps to optimize the operating efficiency of the power system, reduce energy loss, monitor the operating status of the power system in real time, and adjust the excitation parameters as needed to maintain system stability. When the power load changes or fails, it can respond quickly to prevent system instability or crash. The controller has a fault diagnosis function to detect abnormal conditions in the excitation system or related equipment and take appropriate protective measures. This helps reduce equipment damage and downtime and increases the reliability of the power system.
