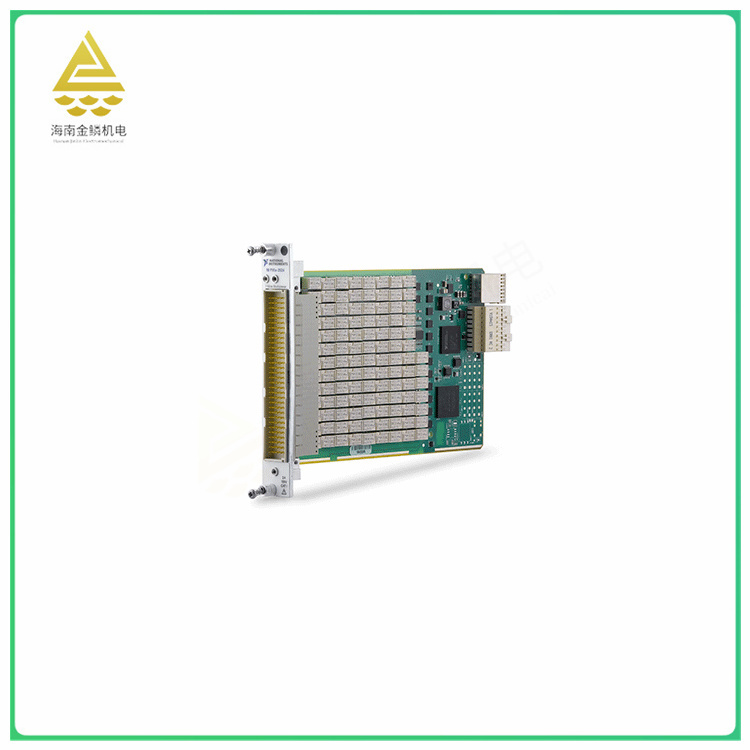

The PXIe-2524 is a high density multiplexer switch module with the following features:
High density: The module offers a variety of single-wire multiplexer configurations, including 16 bank 8x1, octal 16x1, four-channel 32x1, dual-channel 64x1 and 128x1, etc., suitable for signal routing in various automated test systems.
Just-in-time Switching operation: Using electromechanical relays, the PXIe-2524 can perform just-in-time switching operations in a variety of single-wire multiplexer configurations, providing fast and reliable signal routing.
Monitoring relays: This module has an onboard relay counting function to monitor and control relay status, improving test throughput and accuracy.
Strong certainty: Through the hardware trigger to achieve deterministic operation, improve the stability and reliability of the test system.
Multiple configuration options: PXIe-2524 has a variety of configuration options, users can select and customize according to specific needs, to achieve the best test results.
High performance: The module has the characteristics of low DC path resistance, low thermo electromotive force and high bandwidth to ensure high performance signal transmission and processing.
In summary, the PXIe-2524 is a powerful, high-density, high-performance multiplexer switch module suitable for signal routing and control in a variety of automated test systems.
The PXIe-2524 is a high density multiplexer switch module with the following advantages:
High density: This module offers a variety of single-wire multiplexer configurations for signal routing in a variety of automated test systems.
Just-in-time Switching operation: Using electromechanical relays, the PXIe-2524 can perform just-in-time switching operations in a variety of single-wire multiplexer configurations, providing fast and reliable signal routing.
Monitoring relays: This module has an onboard relay counting function to monitor and control relay status, improving test throughput and accuracy.
Strong certainty: Through the hardware trigger to achieve deterministic operation, improve the stability and reliability of the test system.
High performance: The module has the characteristics of low DC path resistance, low thermo electromotive force and high bandwidth to ensure high performance signal transmission and processing.
However, the PXIe-2524 also has some drawbacks:
High cost: Because the module uses high-quality materials and components, and has undergone strict quality control and testing, the cost is relatively high.
Professional maintenance required: Since the module requires professional technicians for maintenance and commissioning, additional human resources need to be invested.
Overall, the PXIe-2524 is a powerful, high-performance multiplexer switch module suitable for signal routing and control in a variety of automated test systems. Although the cost is higher, its advantages such as high performance, high density and instant switching operation make it ideal for many application scenarios.
