Width: rack 177mm
Box 164mm
Height: Rack 177mm(4U)
Housing 160mm
Depth (embedded installation):149.3mm
Weight :~ 3.1Kg

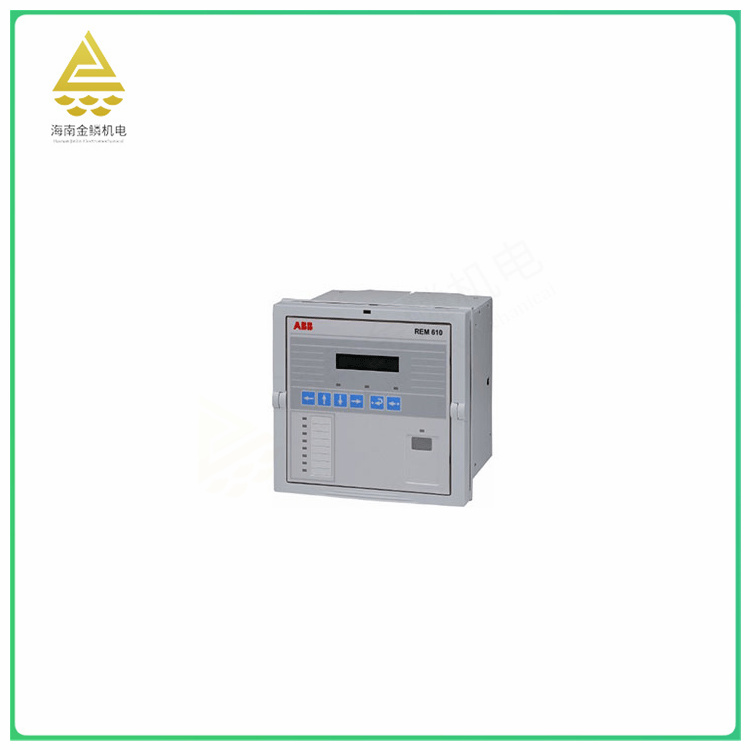

The REM610 is a motor protection relay manufactured by ABB. It is part of ABB's Relion® protection and control product family, specifically the 610 series. This protective relay is designed for medium and large asynchronous low voltage motors and small and medium asynchronous high voltage motors. It is also suitable for protecting power cable outlet and power transformers requiring thermal overload protection.
The REM610 has a variety of protection features, including motor overheat load, motor start monitoring, rotor lock, phase to phase overcurrent, low current, negative sequence protection, zero sequence current and circuit breaker failure protection. It also supports thermistor thermal overload protection with input from the RTD module. In addition, the REM610 has two independent communication interfaces, which can be RS-485 or fiber optic interfaces, supporting MODBUS RTU/ASCII, IEC60870-5-103, DNP3.0 and SPA protocols. The REM610 has an integrated fault recording module with four analog input channels and up to eight user-selectable switching channels for complete fault status recording.
REM610 is mainly used in the field of industrial automation, especially in industrial automation PLC/DCS system control. Due to its versatility and high reliability, the REM610 is widely used in a variety of industrial applications.
The application range of REM610 protectors mainly includes medium and large asynchronous low voltage motors and small and medium asynchronous high voltage motors. In addition, it can be used to protect power cable outlets and power transformers requiring thermal overload protection. The REM610 protectors are particularly suitable for pump, blower, grinder or crusher applications and can handle faults during motor start-up, running, idling and stop cooling.
The main functions of the REM610 protector include overload protection, short circuit protection, undervoltage protection, etc., which can cut off the power supply in time according to the running state and current of the motor to protect the motor from damage. In addition, the protector also has an alarm function, which can send an alarm signal in time when the fault occurs, reminding the staff to deal with it in time.
The REM610 protector is part of ABB's Relion® protection and control product family and features a plug-in design for easy debugging in switchgear and quick and safe insertion and removal of relay plugins. At the same time, it supports a variety of communication protocols, such as MODBUS RTU/ASCII, IEC60870-5-103, DNP3.0 and SPA protocols, can meet different communication needs.
In short, the REM610 protector is an efficient, safe and reliable motor protection device, which is widely used in the field of industrial automation and provides important support and protection for various industrial applications.
