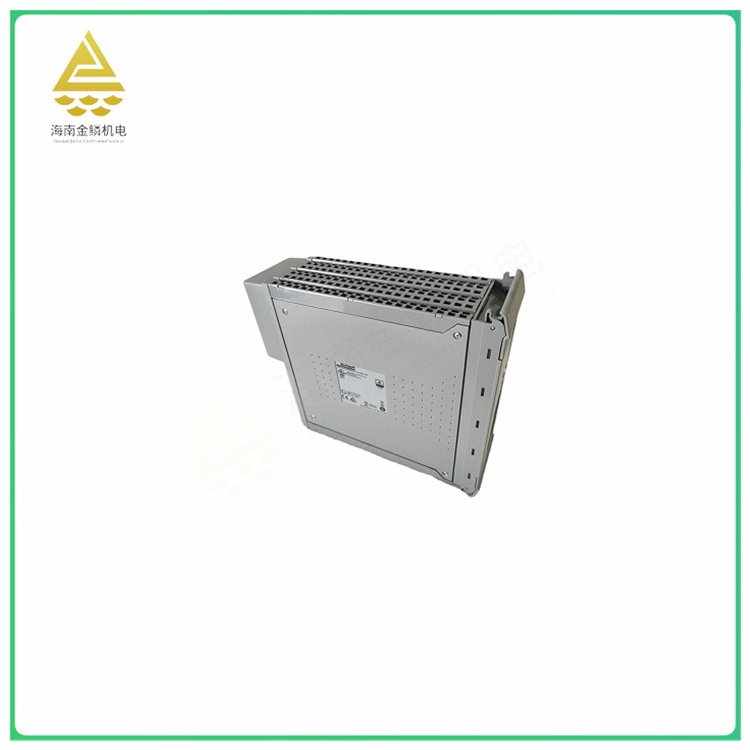

The T8461 is a digital output module commonly used in industrial automation control systems. This module has the following features:
Power supply: The T8461 module receives 24/48 VDC power supply, providing stable DC power to its internal circuits and output channels.
Multichannel output: The module typically has eight or more digital output channels, each of which can be controlled independently to drive external devices or actuators.
Overcurrent protection: Each output channel has automatic overcurrent protection, which means that when the output current exceeds the set value, the module automatically cuts off the output to protect the load and the module itself from damage.
Line monitoring: The T8461 has automatic line monitoring to detect open and short circuit faults and take appropriate protective measures when these faults are detected.
LED indicator: Each output channel is usually equipped with LED indicators, and users can easily view the output status through these indicators to determine whether the output channel is active.
Easy installation: The module is usually mounted on a DIN rail, which means it can be easily mounted on a standard DIN rail for easy installation and maintenance.
Output parameters: The output voltage range of the T8461 is typically between 18 and 60 Vdc, with A rated output current of 0.75A per channel and a maximum output current of 6A per power pack. In addition, the module also has the minimum on-state load current and output off state resistance and other parameters.
Wide range of applications: Because the T8461 has multiple functions and flexible configuration options, it is suitable for a variety of industrial automation applications, including but not limited to motor control, light control, valve control, and more.
The T8461 digital output module has some significant advantages and potential disadvantages in industrial automation control systems. The following is an analysis of its advantages and disadvantages:
Advantages:
High density output: The T8461 supports up to 32 digital output channels and can be scaled up to 128 channels via motherboard cascades. This high-density output capability enables it to control a large number of external devices or actuators simultaneously, improving the control efficiency and flexibility of the system.
Programmability: Users can customize control signal output instructions through programming software to achieve a variety of control requirements. This programmability enables the T8461 to adapt to different application scenarios and changing requirements, improving the adaptability and scalability of the system.
High reliability: The T8461 adopts a triple fault-tolerant design with high reliability and anti-interference capability to ensure stable operation of the system. This design allows it to operate for long periods in harsh industrial environments, reducing the frequency of system failures and maintenance.
Field maintainability: The T8461 supports field hot swap for easy module replacement and maintenance. This design allows for quick and simple replacement of failing modules when the system is being maintained or upgraded, reducing maintenance time and costs.
Cons:
High cost: The price of the T8461 may be relatively high due to its advanced features such as high-density output, programmability and high reliability. This can make it impossible for some projects or applications with limited budgets to cover their costs.
High technical barriers: Because the T8461 involves complex programming and control techniques, high technical knowledge and experience may be required to configure and maintain it. This may limit the use of some non-professional users or small businesses.
Reliance on specific brands or protocols: The T8461 is a product of ABB and may therefore require reliance on specific brands or protocols. This can limit interoperability with other systems or devices, making system integration and scaling more difficult.
In summary, the T8461 digital output module has the advantages of high density output, programmability, high reliability and field maintenance, and is suitable for industrial automation applications requiring a large number of output channels and flexible control. However, its drawbacks such as high cost, technical barriers and reliance on specific brands or protocols also need to be taken into consideration when using.
