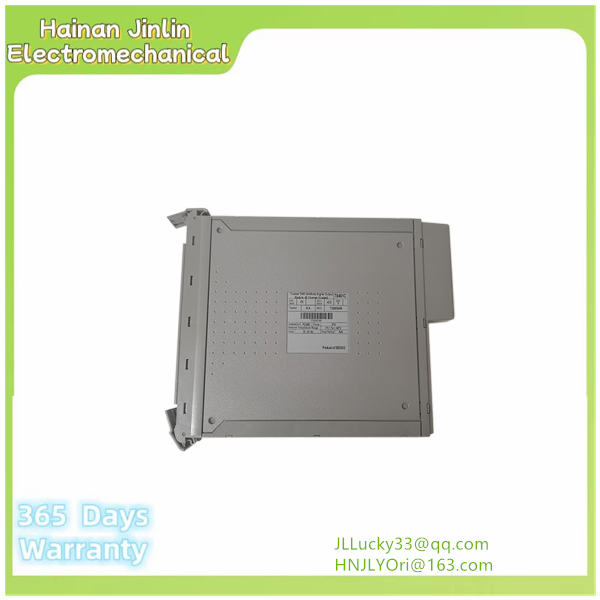

Manufacturer: ICS Triplex
Model: T8461C
System power supply voltage range: 20 to 32Vdc
Circuit type: Fault tolerant, full triple, with optional circuits
Supervisory control
Output quantity: 40 channels
Independent power group: 5 out of 8 outputs
Working output/Field voltage range: 18 to 60V dc
Output voltage
Measuring range: 0 to 60V DC
Maximum withstand voltage: -1 to 60V DC
Output current rating (continuous) : 0.75A per channel
Power supply 6A per group
Category: Digital input module
The T8461C Digital input module is an electronic component used to transmit digital signals to electronic devices. It is usually composed of a number of switches or keys, when these switches or keys are pressed, the digital input module will detect the corresponding electrical signal, and convert it into a digital signal transmitted to the electronic device for processing.
The T8461C digital input module is usually used to control the operation of the equipment, such as controlling the start and stop of the motor, adjusting the brightness of the light, etc. In industrial control, automation, robotics and other fields, digital input module is a very common component.
The T8461C digital input module is usually composed of a number of switches or keys, when these switches or keys are pressed, the digital input module will detect the corresponding electrical signals and convert them into digital signals to be transmitted to electronic devices for processing.
Specifically, the T8461C digital input module typically includes an internal set of input ports that can be connected to external switches or keys. When the switch or key is pressed, an electrical signal is generated, which is transmitted to the digital input module through the input port.
The circuit inside the digital input module processes the electrical signal, converts it into a digital signal, and transmits the digital signal to the processor or other circuits of the electronic device. In a processor or other circuit, a digital signal can be decoded to determine which switch or key is pressed and perform the corresponding action.
