Model: T8480C
Category; module
Operating temperature: -40°C to 70°C
Storage temperature: -55°C to 85°C
Humidity: 5% to 95% (non-condensing)
Protection level: IP67
Isolation voltage: 250V RMS
Surge voltage: 4kV
Noise suppression: 500V/μs

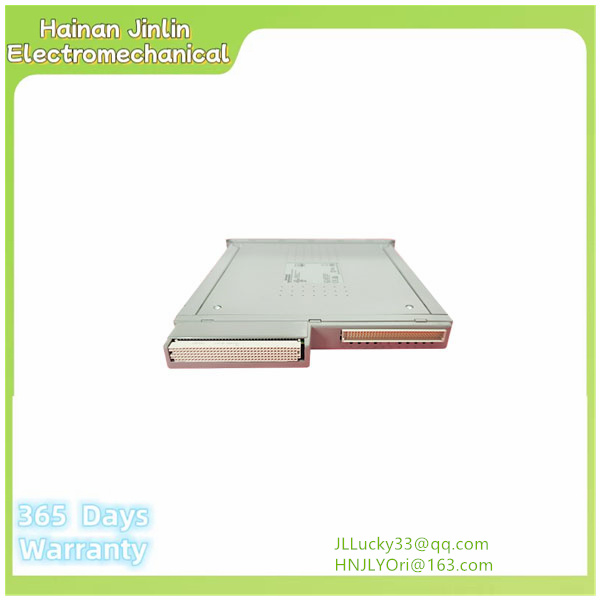

The ICSTRIPLEX T8480C industrial control module is designed for single and redundant configurations. The module has 8 current input channels. The input resistance is 250 ohms. This module allocates external transmitter power to each channel. This adds a simple connection that distributes power to a 2 - or 3-wire transmitter. Transmitter power is monitored and current limited. All eight channels are isolated from the module bus in a group. The power supply of the module is generated by 24 V on the module bus. Complies with NAMUR's recommended NE43 and supports configurable overrange and down-range limits.
ICSTRIPLEX T8480C industrial control module of the computer, it is different from the control station, has a wealth of peripheral equipment and human-machine interface. In the man-machine interface, gradually transition to the GUI graphical user interface as the platform and the use of mouse, the configuration of the production of flow charts and control loop diagrams using menus, Windows, etc., to make the man-machine interface friendly. The third generation DCS operating station was born on the basis of the popularity of personal computers (PCS) and Windows operating systems and the commercialization of general monitoring graphics software.
DDE or OPC interface technology, Ethernet interface connected to the management network. DCS system configuration, operation station configuration, control station configuration have corresponding software, for DCS users to provide a man-machine interface. Some DCS use general monitoring graphics software, or such software as the core, secondary development.
