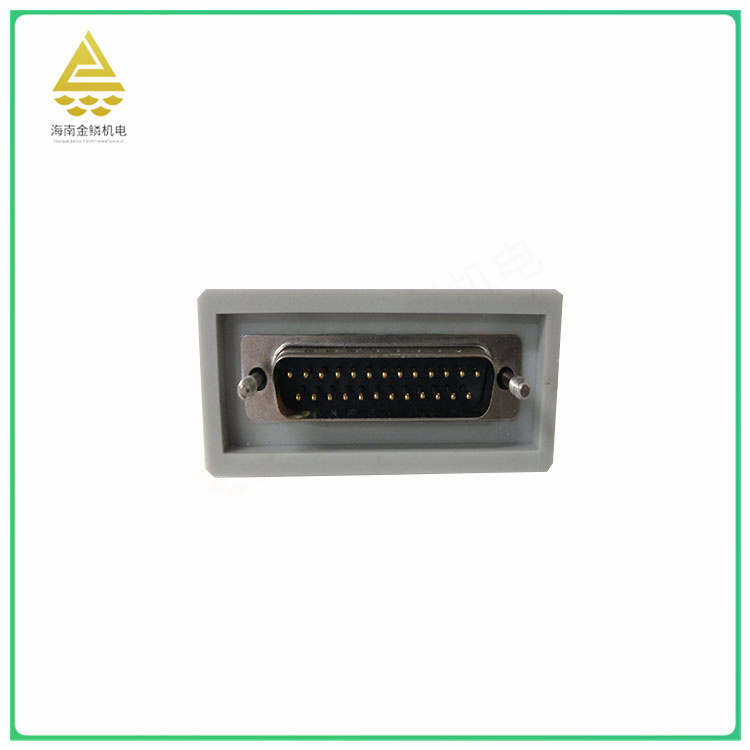

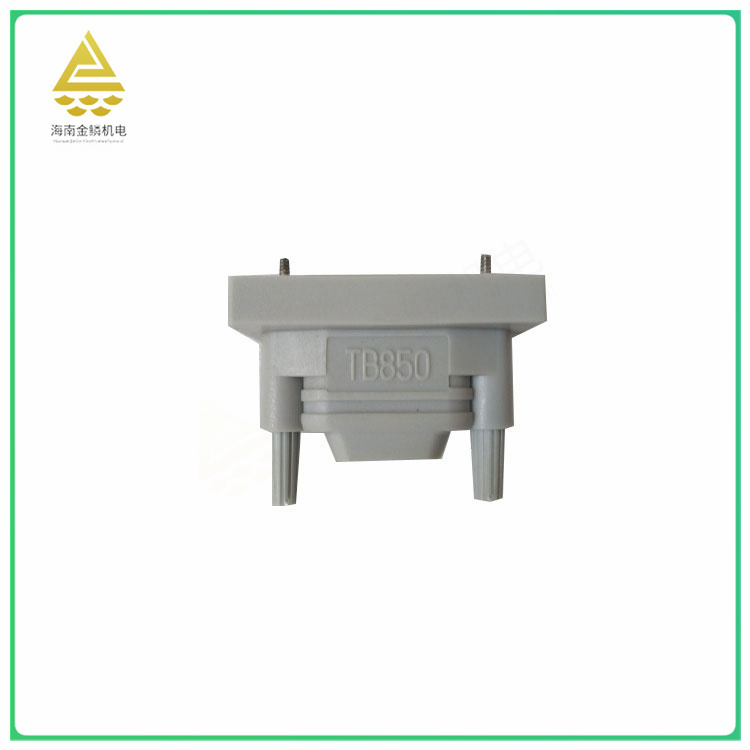

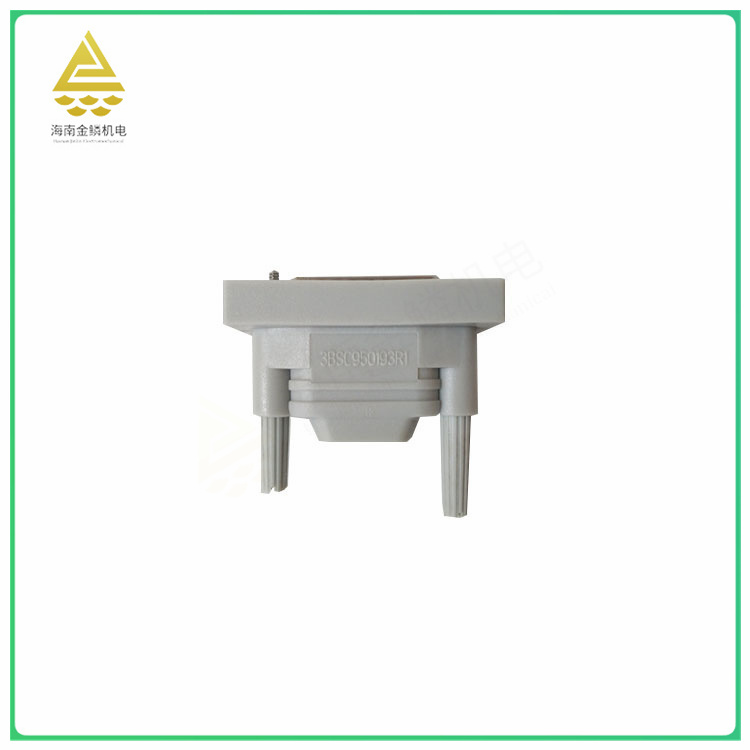

Product Details: ABB TB850 3BSC950193R1 is an analog expansion module commonly used in industrial automation and control systems to expand the capacity of analog input and output signals. This type of module is commonly used to monitor and control various industrial processes and equipment.
The ABB TB850-3BSC950193R1 is an analog expansion module commonly used in industrial automation and control systems to extend analog input or output capabilities to monitor or control various process variables.
Analog expansion modules usually have the following features and functions:
High precision and stability: The module uses high-quality materials and manufacturing processes to ensure high stability and reliability under various working conditions.
Multiple interfaces and communication protocols: The module supports multiple communication interfaces and protocols for easy connection and integration with other devices or systems.
Scalability: Users can flexibly expand and upgrade according to actual requirements, and support multi-channel and multi-module configurations.
Easy to configure and use: The module provides a user-friendly interface and easy-to-use configuration tools to facilitate system configuration and debugging.
In the field of industrial automation, analog expansion module is widely used. For example, it can be used for the monitoring and control of analog signals such as temperature, pressure, and flow to achieve accurate data acquisition and measurement. In addition, the module can also be used for distributed control of industrial control cabinets, automated monitoring of production processes and intelligent manufacturing systems.
In short, the ABB TB850-3BSC950193R1 analog expansion module is an integral part of industrial automation and control systems, which provide important support for the stable, reliable and accurate operation of the system.
TB850-3BSC950193R1 analog expansion module is mainly used to connect analog input devices such as sensors, which can convert analog signals into digital signals for the controller to process. Take Principal XC-E3AD4PT2DA module as an example, its setup steps are as follows:
TB850-3BSC950193R1 Open the Principal programming software, select the expansion module Settings in PLC Settings, click Add Analog module, and then select the expansion module.
Select the module model and double-click to enter.
TB850-3BSC950193R1 Sets parameters related to the input channel, including selecting the input current mode (0-20 mA or 4-20 mA), channel filtering (using the default value directly), etc.
Set the parameters for the DA channel, including selecting the output voltage mode (0-5 volts or 0-10 volts).
Click Write PLC, after the successful display, module 1 will display the module model, and then click OK, the module will be added to the PLC.
TB850-3BSC950193R1 Click the ladder monitor to see if there is data read back. If there is data read back, and the data is changing, it means that the analog module has been running normally.
