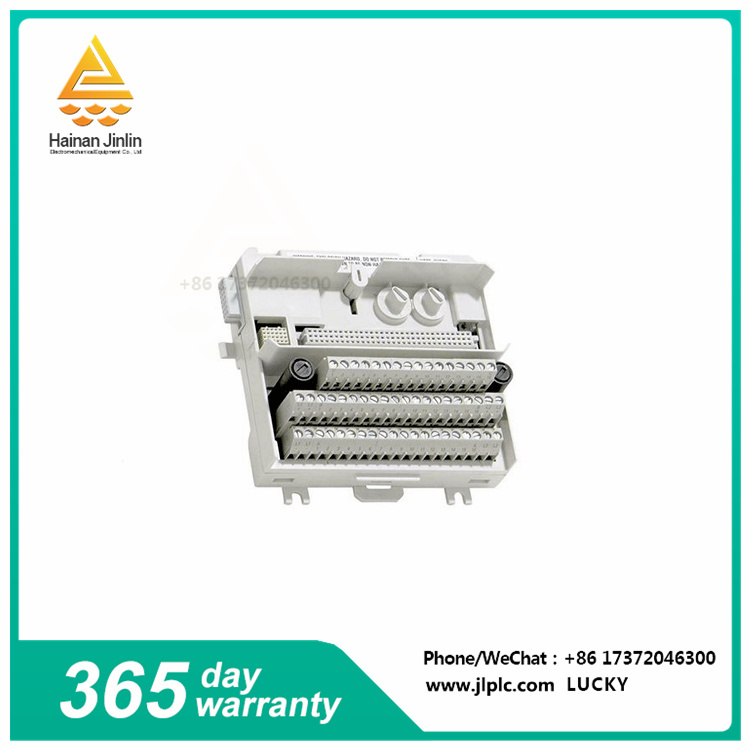

The TU830V1 3BSE013234R1 is an expansion module terminal unit (MTU) manufactured by ABB for its S800 I/O system. Here's a breakdown of its features and applications:
Features:
Terminating I/O modules: The TU830V1 acts as the terminal point for connecting multiple I/O modules (sensors and actuators) to the S800 system. It provides the necessary electrical connections and signal conditioning for the correct communication and operation of the I/O modules.
Extended configuration: The "extended" name in the model name (TU830V1) may indicate that this MTU supports more I/O modules than the standard MTU. This increases the flexibility of configuring the S800 system to accommodate more sensors and actuators.
Terminal connection: The 3BSE013234R1 part number may refer to the specific type of terminal connector used on this MTU. This allows wires from the I/O module to be easily connected using screw terminals or other connection methods, depending on the terminal type.
Applications:
The TU830V1 3BSE013234R1 MTU is used in a variety of industrial automation applications, where the ABB S800 I/O system is used for process control and machine monitoring. Here are some examples:
Factory automation: Production lines, assembly lines and other factory automation applications use sensors and actuators connected through the S800 system. The TU830V1 MTU facilitates the connection and management of these I/O modules.
Process control Industry: Chemical plants, refineries and other process control applications utilize a variety of sensors
(temperature, pressure, flow) and actuators (valves, pumps) that interface with the S800 system. The TU830V1 MTU provides the connection point for these I/O modules.
Building Automation systems: In large buildings, S800 systems can be used to monitor and control environmental conditions such as temperature, humidity and ventilation. The TU830V1 MTU can connect sensors and actuators used in such systems.
Other points to note:
System compatibility: This MTU is designed for ABB S800 I/O systems and may not be compatible with other PLC systems from different manufacturers.
Rated voltage and current: The TU830V1 may support a rated voltage of 50V DC and a maximum current of 2A per I/O channel. Make sure your application requirements conform to these specifications.
Hazardous Place Compatibility: If your application involves hazardous environments, verify that the specific model number (3BSE013234R1) is certified for use in such environments (e.g., C1 Div 2 classification).
